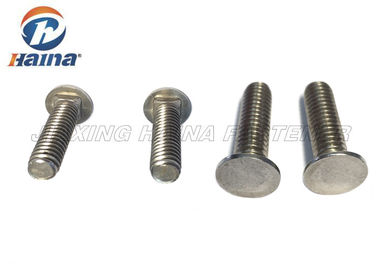

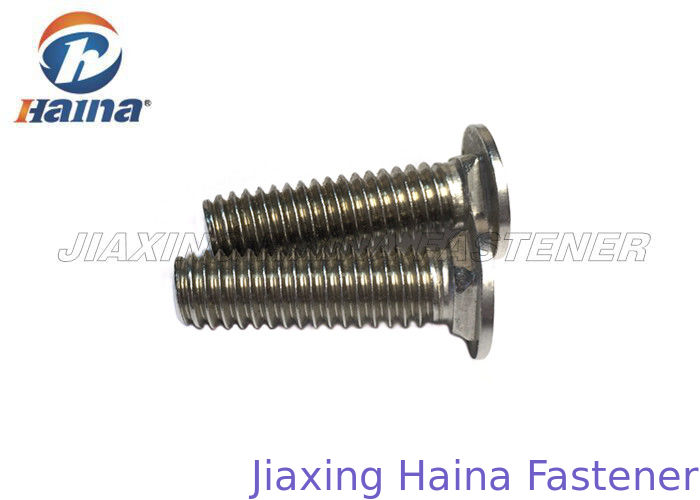

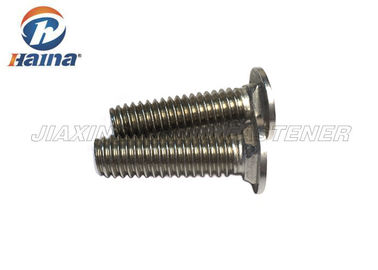

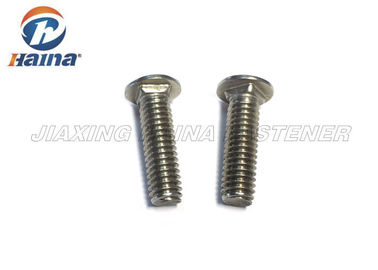

A2 A4 304 316 stainless steel M10 M12 M16 DIN605 Carriage Bolt

A2 A4 304 316 stainless steel M10 M12 M16 DIN605 Carriage Bolt


Description:

Carriage bolt means CSK head or muchroom head square neck screws. Carriage bolt are divided by head size. Mushroom head carriage bolts (corresponding to the standard GB / T14 and DIN693), less than half the ball carriage bolts (corresponding to the standard GB / T12-85). Carriage bolts, consisting of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole.

A carriage bolt, coach bolt or round head square neck bolt is a form of bolt which is used to fasten metal to wood. It is distinguished from other bolts by its shallow mushroom head and that the shank cross-section of the bolt is circular for most of its length, as usual, but the portion immediately beneath the head is formed into a square section. This makes the bolt self-locking when placed through a square hole in a metal strap, or a round hole in most wood. This allows the fastener to be installed with only a single tool, a spanner or wrench, working from one side. The head of a carriage bolt is usually a shallow dome. The squared section is of the same size as the diameter of the bolt shank, with a plain unthreaded shank.

Carriage bolts were developed for use through iron strengthening plates on either side of a wooden beam. It is commonplace though to use them to bare timber, the squared section giving enough grip to prevent rotation.

Carriage bolts are extensively used in security fixings, such as the Brenton Bolt where the bolt must only be removable from one side. The smooth domed head and square nut below prevent the carriage bolt from being unlocked from the insecure side.

Specification:
