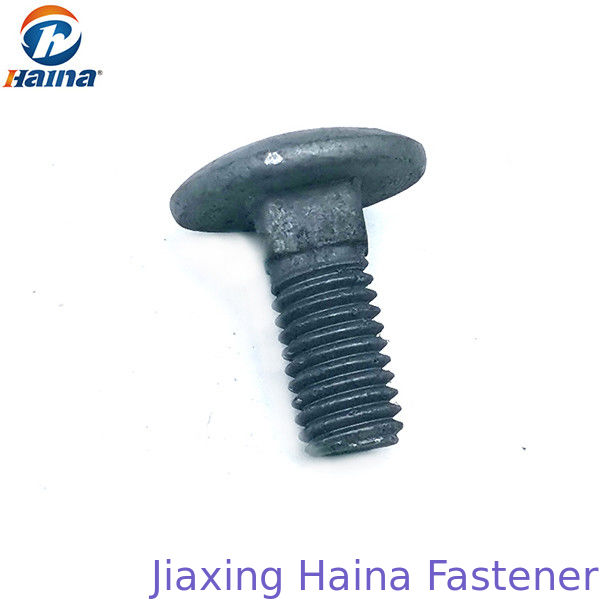

Metric Steel Din603 Hot Dipping Galvanizing Mushroom Head Carriage Bolt

Metric Steel Din603 Hot Dipping Galvanizing Mushroom Head Carriage Bolt

  • Metric Steel Din603  Hot Dipping Galvanizing Mushroom Head Carriage Bolt
  • Metric Steel Din603  Hot Dipping Galvanizing Mushroom Head Carriage Bolt
  • Metric Steel Din603  Hot Dipping Galvanizing Mushroom Head Carriage Bolt
  • Metric Steel Din603  Hot Dipping Galvanizing Mushroom Head Carriage Bolt
Metric Steel Din603  Hot Dipping Galvanizing Mushroom Head Carriage Bolt
Product Details:
Place of Origin: Jiaxing, China
Brand Name: HNF
Certification: ISO9001:2008
Model Number: 3/8"-16x5"
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Product: Metric Steel Din603 Hot Dipping Galvanizing Mushroom Head Carriage Bolt Head Drive: Mushroom Head
Surface: Stainless Steel Specification: DIN603
Grade: 4.8/ 8.8/ 10.9/ 12.9/304/316 Other Name: Coach Bolt
Material: Carbon Steel, Stainless Steel Pitch System: Metric Inch
Connection: Common Bolt
High Light:

steel carriage bolts

,

zinc plated carriage bolts

,

carriage bolts

Metric Steel Din603 Hot Dipping Galvanizing Mushroom Head Carriage Bolt


Description:



Hot-dip galvanized bolt is the removal of rust after the bolt immersed in molten 500℃ metal zinc solution, so that the zinc layer attached to the surface of the bolt, for corrosion protection, is a very effective way of corrosion protection.Background generally more of a hot dip galvanized high strength bolt, to prevent oxidation of the purification bolt before immersion plating pot, to remove surface residue, need to put a layer of flux layer on the surface, dip, easy heating volatilization, the flux layer to the surface of fresh bolt direct contact with molten metal zinc, infiltration, dissolution, diffusion and chemical reaction, etc., in the form on the surface of the steel and attach a layer of molten metal zinc alloy layer, the formation of zinc coating after cooling.The hot dip galvanizing of high strength bolt can obtain a thick galvanizing layer, the thickness is generally not less than 80 microns, the corrosion resistance is good, and the zinc coating adhesion is good, and convenient for subsequent welding and coating process. Our company produces and operates fasteners. We have been exporting foreign trade for many years. We have a professional testing department. We provide relevant testing certificates. Our service is excellent and the quality is excellent. Customers are welcome to consult and purchase.



Specification:

Name Metric Steel Din603 Hot Dipping Galvanizing Mushroom Head Carriage Bolt
Standard DIN, ISO, JIS, AS, BS, EN, SAE, ASTM
Other Name Plow Bolt
Export Country Canada
HS Code 7318159090
Thread Length Full Thread
Grade Bolt: Gr 4.6 4.8 5.6 5.8 8.8 10.9 12.9 14.9 (DIN)
Bolt: Gr 2 Gr 5 Gr 8 (ASTM)
Thread UNC, UNF
Material Carbon steel (#1035,#1045, 40Cr, 35CrMo)
Size 3/16''-3'' (ASTM)
Finish Blue White Zinc plated,
Production Technique Cold forging, Hot forming, Machining, Heat treatment, Staming, etc

Drawing Data

SIZE 1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1
A max 0.594 0.719 0.844 0.969 1.094 1.344 1.594 1.844 2.094
min 0.563 0.688 0.782 0.907 1.032 1.219 1.469 1.719 1.969
H max 0.145 0.176 0.208 0.239 0.270 0.344 0.406 0.459 0.531
min 0.125 0.156 0.188 0.219 0.250 0.313 0.375 0.438 0.500
O max 0.260 0.324 0.388 0.452 0.515 0.642 0.768 0.895 1.022
min 0.245 0.307 0.368 0.431 0.492 0.616 0.741 0.865 0.990
P max 0.156 0.187 0.219 0.250 0.281 0.344 0.406 0.469 0.531
min 0.125 0.156 0.188 0.219 0.250 0.313 0.375 0.438 0.500



Metric Steel Din603  Hot Dipping Galvanizing Mushroom Head Carriage Bolt 0


Application:


Stainless steel carriage bolts are widely used in automobile manufacturing, steel, marine engineering, port, electric power, shipbuilding, petrochemical industry, mine, railway, construction, metallurgy, plastic machinery, industrial control, highway, large-scale transportation, pipeline and supporting, slope tunnel, seepage prevention, well control and protection, salvage, seepage prevention and anticorrosion. Seepage control, seepage control, seepage control, seepage control, seepage control, seepage control, seepage control, seepage control, seepage control, seepage control, seepage control, Airport construction, bridge, aviation, aerospace and other important sites and infrastructure construction industries, machinery and equipment.
If you are interested in carriage bolts, please feel free to contact us. We produce fasteners for many years, with rich experience, high quality and high service. They can be customized according to customers'requirements and drawings. Welcome to harass consultation and purchase..

Advantages:



1. Free sample service
2. Third party inspection
3. global market
4. Good service
5. High-quality
6. Right price

Metric Steel Din603  Hot Dipping Galvanizing Mushroom Head Carriage Bolt 1
