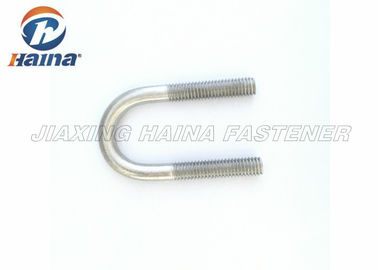

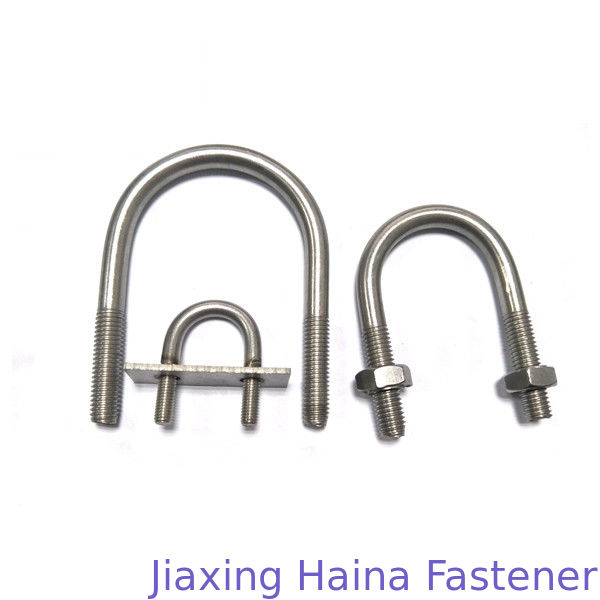

A2 A4 Combined Thread Ends Machinery U Bolts with nuts and plate

A2 A4 Combined Thread Ends Machinery U Bolts with nuts and plate

1.Product Description

Round bend U bolt, also called horse bolts, is non standard parts, The shape is U shape so it is also called U type bolt, it can be combined with nut and thread ends , mainly used for fixed tubular objects such as pipes or sheet material such as automobile leaf spring, due to the fixed objects like people riding in immediately.A round bend U Type Bolt is known as U shaped bolt with feature two threaded arms extending from a bended bottom. There are many usage for a U-bolt such as to attached different sizes pipes to machines. However a round bend U-Bolt is commonly used for lumber applications. Suitable for automotive, plumbing and other home and industrial applications. Because the round bend U Type bolt is a non-standard bolts, as is it shaped like U-shaped, so we called it U type bolts, which can be combined with two nuts and plated, mainly used as fixed tubular pipe or sheet such as automotive leaf spring, because of the way its fixed objects like a man on horseback, also known as horse bolts.U type bolt generally used in the truck, which is used to stabilizing the site and car chassis. For example, the leaf spring is connected by the u-bolt. U type bolts usually used in daily life: construction and installation, machinery parts connected vehicles, ships, bridges, tunnels and railways. There are so many Principal shapes like semi-circular shape square shape and so on.

A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.

U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting.

For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions of the U-bolt.

The nominal bore of a pipe is actually a measurement of the inside diameter of the pipe. Engineers are interested in this because they design a pipe by the amount of fluid / gas it can transport.

As U-bolts are now being used by a much wider audience to clamp any kind of tubing / round bar, then a more convenient measurement system needs to be used.

Four elements uniquely define any U-bolt:

1. Material type (for example: bright zinc-plated mild steel or stainless steel )
2. Thread dimensions (for example: M10 * 60 mm)
3. Inside diameter (for example: 40 mm - the distance between the legs)
4. Inside height (for example: 100 mm)

2. Specification

3.Application

U-bolts are generally used in the truck, which is used to stabilize the site and car chassis. For example, the leaf spring is connected to the u-bolt.
U-bolts versatile main purposes: construction and installation, machinery parts connected vehicles, ships, bridges, tunnels and railways. Principal shapes: semi-circular, square, rectangular, triangular, oblique triangle.

4.Advantages

1, The material properties of density, flexural strength, impact toughness, compressive strength, elastic modulus, tensile strength, heat resistance, color is determined according to the use environment.

2, The material commonly used carbon steel Q235A Q345B alloy steel and stainless steel. Wherein the stainless steel has 201 304,321,304L, 316,316L ,.

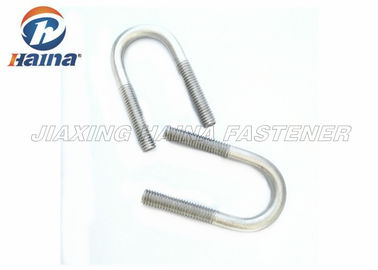

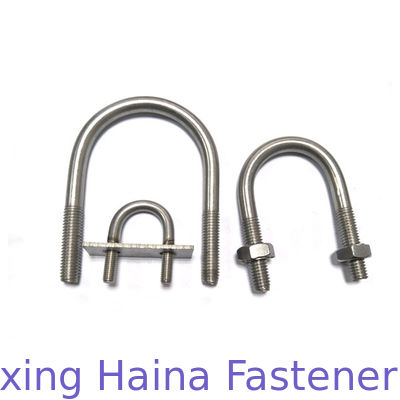

5.More pictures
