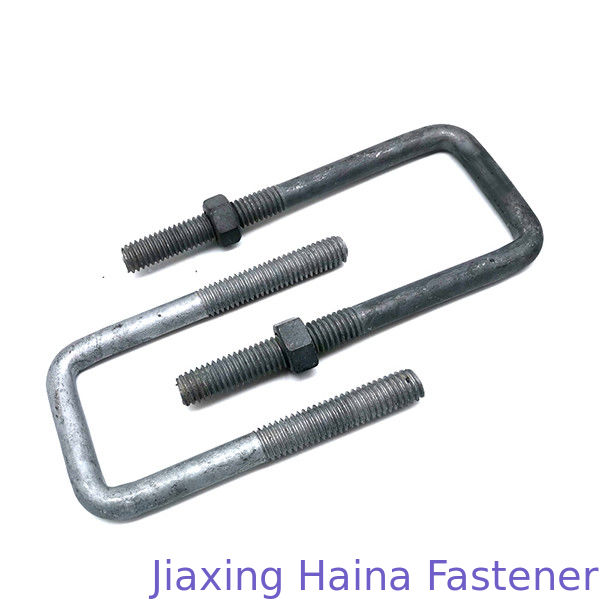

Electric Tower carbon steel HDG DIN3570 U shape Bolts and Nuts

Electric Tower carbon steel HDG DIN3570 U shape Bolts and Nuts

  • Electric Tower carbon steel HDG DIN3570  U shape Bolts and Nuts
  • Electric Tower carbon steel HDG DIN3570  U shape Bolts and Nuts
  • Electric Tower carbon steel HDG DIN3570  U shape Bolts and Nuts
  • Electric Tower carbon steel HDG DIN3570  U shape Bolts and Nuts
Electric Tower carbon steel HDG DIN3570  U shape Bolts and Nuts
Product Details:
Place of Origin: China (Mainland)
Brand Name: HNF
Certification: ISO9001
Model Number: DIN
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton and pallet or customize packing
Delivery Time: 5-20days
Payment Terms: L/C, T/T, Western Union.palpay
Supply Ability: 350 ton per month
Contact Now
Detailed Product Description
Product Name: Electric Tower Carbon Steel HDG DIN3570 U Bolts With Nuts Finish: HDG
Material: Carbon Steel Advantage: Good Corrosion Resistance
Thread: Two Arms Threaded Thread Size: M10-m67
Bolt Type: U Type Style: Round Bend
High Light:

bolts

,

u bolts

,

nuts and bolts

Electric Tower carbon steel HDG DIN3570 U Bolts With Nuts



1.Product Description



U bolt, namely riding bolt, riding bolt English name is u-bolt, non-standard parts, is the shape of the U shape so also known as U screw,U tube card,U tube clip, both ends of the thread can be combined with the nut, mainly used to fix the tube like water pipe or flake such as automobile plate spring.The standard for fasteners such as u-bolts is the norm, and each country and department has its own standard.At present, the most commonly used standards in our daily business are as follows:

GB -- Chinese national standard (GB)ANSI -- American national standard (GB)

DIN - German national standard (German standard)ASME - American society of mechanical engineers standard

JIS -- Japanese national standard BSW -- British national standard

GB - the national standard is one of the many standards in our country, there are also industry standards, professional standards and departmental standards.National standard divides again :GB(strong system sex standard) and GB/T(recommend sex standard) and GBn(country interior standard) wait.What we usually see like GB30,GB5783 and so on are mandatory standards.

Four elements uniquely define any U-bolt:

  1. Material type (for example: bright zinc-plated mild steel or stainless steel )
  2. Thread dimensions (for example: M10 * 60 mm)
  3. Inside diameter (for example: 40 mm - the distance between the legs)
  4. Inside height (for example: 100 mm)

Above a few kinds of standard besides a few basic dimensions are like head opposite edge, head thickness is waited for different besides, the most main is whorl part is different.GB, DIN, JIS and other threads are MM(MM) for the unit, collectively known as the metric thread.Another thread such as ANSI, ASME etc is in inches called American standard thread.In addition to metric and American threads there is a BSW - British standard, also in inches, known as wyeth threads.



2. Specification



Product Dimensions M10
Bolt Thread Pitch 18
Free Sample Available for free
Thread type Two Arms Threaded
Advantages

Corrosion Resistance,High Tensile, stainless steel



3.Application



U-bolts are generally used in the truck, which is used to stabilize the site and car chassis. For example, the leaf spring is connected to the u-bolt.
U-bolts versatile main purposes: construction and installation, machinery parts connected vehicles, ships, bridges, tunnels and railways. Principal shapes: semi-circular, square, rectangular, triangular, oblique triangle.



4.Advantages



1, The material properties of density, flexural strength, impact toughness, compressive strength, elastic modulus, tensile strength, heat resistance, color is determined according to the use environment.

2, The material commonly used carbon steel Q235A Q345B alloy steel and stainless steel. Wherein the stainless steel has 201 304,321,304L, 316,316L ,.

5.More pictures

Electric Tower carbon steel HDG DIN3570  U shape Bolts and Nuts 0
