B1306 Landmark Plaza No.1238 Hongxing Road JiaXing , ZheJiang , China 314001 | tony@hainafastener.com |
Place of Origin: | China |
Brand Name: | HNF |
Certification: | ISO9001 |
Model Number: | M6-M12 |
Minimum Order Quantity: | 2000 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | carton + pallet |
Delivery Time: | 20-25 days |
Payment Terms: | Western Union, L/C,T/T, |
Supply Ability: | 150 ton / per month |
Name: | Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts | Size: | M10 |
---|---|---|---|
Available Material: | Carbon Steel | Connection: | Nut , Washer , Flat Gasket |
The Alias: | Bend Bolt | Application: | Machinery,Chemical Industry, Environmental,Building |
Surface: | Zinc Plated , HDG , Plain | Port: | Shanghai , Ningbo |
Sample: | Available | Product: | Stainless Steel Bolts , Round / Square Bend Bolts , U Type Bolts |
High Light: | ss u bolts,metric u bolts |

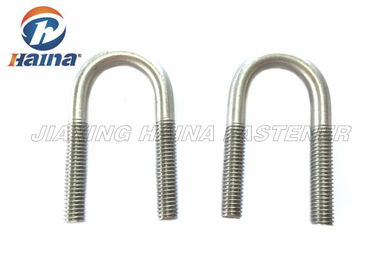

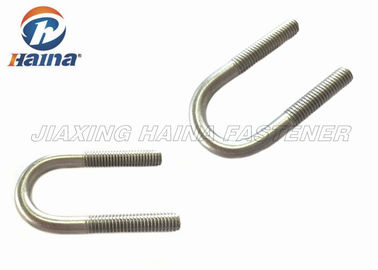

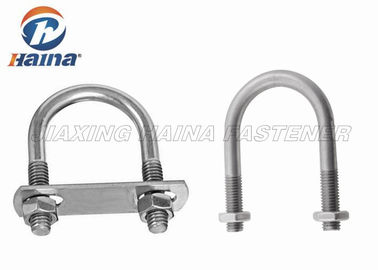

Zinc Plated M8 / M12 Diameter Round / Square Bend U Bolts
Description:
A U-Bolt is a U shaped type bolt with two threaded arms protruding from a curved base. There are many uses for a U-bolt such as attaching pipes to machines. And another a square shaped U-Bolt is almost used in lumber applications. Zinc plating, retards the corrosion rate in a normal atmosphere.A U-bolt is a bolt in the shape of the letter U with threaded on both ends.
Stainless Steel, U-Bolt, For Marine & Other Outdoor Applications, Resistant To Atmospheric Corrosion, Passivated For Superior Corrosion Resistance, Non-Magnetic, Bulk.Always a U-bolt will add 2 hex nuts, assembled. Manufactured from steel with stainless steel finish.
Bend Type: Round Bend , Semi-Round Bend , Square Bend
Diameter: M6,M8,M10,M12
Sufacce treatment: Zinc plating,Retards the corrosion rate in a normal atmosphere. Hot Dip Galvanized .
U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As known, U-bolts were measured using pipe-works engineering speak. A U-bolt would be described by the size of pipe.
Specification:
Size | A pipe dia | B shank | C threaded | D diameter | M center | L height |
M10*25 | 27 | 8.9 | 28 | 10 | 37 | 56 |
M10*27 | 29 | 8.9 | 28 | 10 | 39 | 58 |
M10*33 | 35 | 8.9 | 28 | 10 | 45 | 64 |
M10*38 | 42 | 8.9 | 30 | 10 | 50 | 69 |
M10*42 | 44 | 8.9 | 30 | 10 | 54 | 73 |
M10*45 | 47 | 8.9 | 30 | 10 | 57 | 76 |
M10*48 | 50 | 8.9 | 35 | 10 | 60 | 82 |
M10*57 | 59 | 8.9 | 35 | 10 | 69 | 91 |
M10*60 | 62 | 8.9 | 35 | 10 | 72 | 94 |
M10*63 | 65 | 8.9 | 35 | 10 | 75 | 97 |
M10*76 | 78 | 8.9 | 40 | 10 | 88 | 110 |
M10*89 | 91 | 8.9 | 40 | 10 | 101 | 123 |
M10*102 | 104 | 8.9 | 40 | 10 | 114 | 136 |
M10*108 | 110 | 8.9 | 40 | 10 | 120 | 142 |
M10*114 | 116 | 8.9 | 45 | 10 | 126 | 148 |
M10*140 | 142 | 8.9 | 45 | 10 | 152 | 174 |
M10*159 | 161 | 8.9 | 50 | 10 | 171 | 193 |
M10*168 | 170 | 8.9 | 50 | 10 | 180 | 202 |
M10*219 | 221 | 8.9 | 55 | 10 | 231 | 263 |
M10*273 | 275 | 8.9 | 65 | 10 | 285 | 322 |
M10 series |
Application:
Bolt in daily life and industrial production and manufacturing, is little not, bolt, also known as industrial meters.The use of visible bolts widely.
U normally used on the truck, it is used for auto turf and stable frame.Such as leaf spring is u-shaped bolts to connect.
U-bolt [1] wide range of USES, main use: construction and installation, machinery accessories, vehicle shipping, bridge and tunnel rail links, etc.Mainly shape: semicircle, square square, triangle, triangle, etc.
Installation:
1.Place the U-bolt around the pipe. The threaded should be point toward the object fastened. |
2.Slide the U-bolt clamp over the part you are attached. Put the two U-bolt threaded ends into the two holes . |
3.Place a washer on each of the threaded ends. Place a bolt on each threaded ends. |
4.Turn the first bolt by hand in a clockwise direction until snug. Repeat this with the another bolt. |
5.Fastener the bolts with the wrench. Follow the manufacturer’s recommendation |
Related Products:
Advantages:
1) High quality in competitive price
2) Prompt delivery times
3) Various types of long- term supply professinal stainless steel screws
4) Customized services according to the samples and drawings offered.
