| B1306 Landmark Plaza No.1238 Hongxing Road JiaXing , ZheJiang , China 314001 | tony@hainafastener.com |
 |
| Place of Origin: | ZHEJIANG |
| Brand Name: | HNF |
| Certification: | ISO9001 |
| Model Number: | 3/8 5/16 |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | CARTON +PALLET |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | one container PRT MONTH |
| Material: | SS304 SS316 | Capacity: | 980Mpa |
|---|---|---|---|
| Finish: | Plain | Sample: | Free |
| Logo: | Customized For Baby Carrier Sling | Thread: | Standars |
| Packaging Details: | Small Box/poly Bag + Carton + Pallet | Standard: | ISO, DIN, ANSI, GB, Non-standard And More |
| Size Scope: | 3/8 5/16 | Grade: | A2-70 A4-80 |
| Highlight: | ss u bolts,metric u bolts |
||

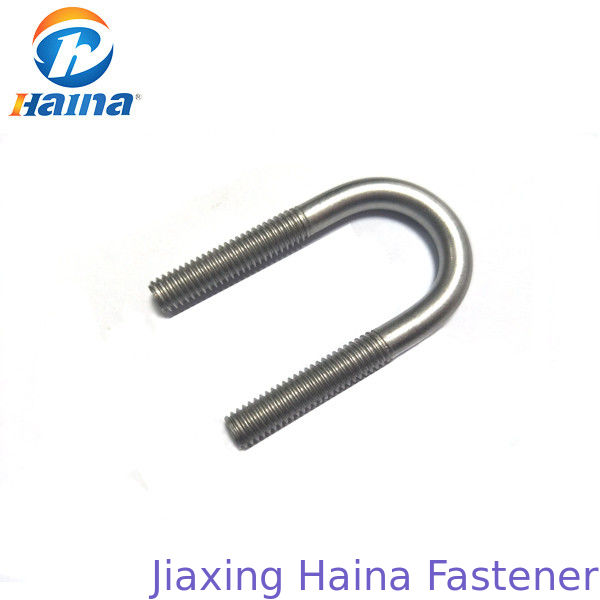

fastener Stainless Steel 304 316 U Shape Round Bend Clamp Bolt
1. Product Description
We specialize in the fastener industry for many years. Stainless steel U-bolts or horse-back bolts are non-standard. U-bolts, also known as U-bolts, are threaded at both ends and can be combined with nuts. They are mainly used to fix pipe shapes. For example, a water pipe or a leaf spring like a car, it is called a horseback bolt because it is fixed in the same way as a person on the horse.
2. Specification
| SIZE | Ins. Width | Ins. Length | Plain | Zinc Plt | HDG | 304 SST | 316 SST | ||
| Dia. | (C) | (L) | Thd | ||||||
| (D) | (T) | ||||||||
| 1/4 x 1/4 | 1/4" | 9/16" | 1 1/2" | 1" | UB1 | UP1 | UG1 | US1 | U31 |
| 1/4 x 3/8 | 1/4" | 3/4" | 1 1/2" | 1" | UB2 | UP2 | UG2 | US2 | U32 |
| 1/4 x 1/2 | 1/4" | 15/16" | 1 3/4" | 1" | UB3 | UP3 | UG3 | US3 | U33 |
| 1/4 x 3/4 | 1/4" | 1 1/8" | 2" | 1 1/8" | UB4 | UP4 | UG4 | US4 | U34 |
| 1/4 x 1 | 1/4" | 1 3/8" | 2 1/4" | 1 1/8" | UB5 | UP5 | UG5 | US5 | U35 |
| 1/4 x 1 1/4 | 1/4" | 1 3/4" | 2 3/4" | 1 1/8" | UB6 | UP6 | UG6 | US6 | U36 |
| 1/4 x 1 1/2 | 1/4" | 2" | 3" | 1 1/4" | UB7 | UP7 | UG7 | US7 | U37 |
| 1/4 x 2 | 1/4" | 2 7/16" | 3 1/2" | 1 1/2" | UB8 | UP8 | UG8 | US8 | U38 |
| 5/16 x 1/2 | 5/16" | 15/16" | 1 3/4" | 1" | UB11 | UP11 | UG11 | ||
| 5/16 x 3/4 | 5/16" | 1 1/8" | 2" | 1 1/8" | UB12 | UP12 | UG12 | US12 | |
| 5/16 x 1 | 5/16" | 1 3/8" | 2 7/16" | 1 1/8" | UB13 | UP13 | UG13 | US13 | U313 |
| 5/16 x 1 1/4 | 5/16" | 1 3/4" | 2 3/4" | 1 1/8" | UB14 | UP14 | UG14 | US14 | U314 |
| 5/16 x 1 1/2 | 5/16" | 2" | 3" | 1 1/8" | UB15 | UP15 | UG15 | US15 | U315 |
| 5/16 x 2 | 5/16" | 2 7/16" | 3 1/2" | 1 1/2" | UB16 | UP16 | UG16 | US16 | U316 |
| 3/8 x 1/2 | 3/8" | 15/16" | 1 3/4" | 1" | UB19 | UP19 | UG19 | ||
| 3/8 x 3/4 | 3/8" | 1 1/8" | 2" | 1 1/8" | UB20 | UP20 | UG20 | US20 | |
| 3/8 x 1 | 3/8" | 1 3/8" | 2 7/16" | 1 1/8" | UB21 | UP21 | UG21 | US21 | U321 |
| 3/8 x 1 1/4 | 3/8" | 1 3/4" | 2 3/4" | 1 1/4" | UB22 | UP22 | UG22 | US22 | U322 |
| 3/8 x 1 1/2 | 3/8" | 2" | 3" | 1 1/4" | UB23 | UP23 | UG23 | US23 | U323 |
| 3/8 x 2 | 3/8" | 2 7/16" | 3 5/8" | 1 3/4" | UB24 | UP24 | UG24 | US24 | U324 |
| 3/8 x 2 1/2 | 3/8" | 3" | 4 1/8" | 2" | UB25 | UP25 | UG25 | US25 | U325 |
| 3/8 x 3 | 3/8" | 3 9/16" | 4 3/4" | 2" | UB26 | UP26 | UG26 | US26 | U326 |
| 3/8 x 4 | 3/8" | 4 9/16" | 5 3/4" | 2" | UB28 | UP28 | UG28 | US28 | U328 |
| 3/8 x 5 | 3/8" | 5 9/16" | 7" | 2" | UB29 | UP29 | UG29 | ||
| 3/8 x 6 | 3/8" | 6 5/8" | 8" | 3" | UB30 | UP30 | UG30 | US30 | |
| 3/8 x 8 | 3/8" | 8 3/4" | 10 1/4" | 3" | UB31 | UP31 | UG31 | US31 | |
| 1/2 x 1 1/2 | 1/2" | 2" | 3" | 1 1/4" | UB36 | UP36 | UG36 | ||
| 1/2 x 2 | 1/2" | 2 7/16" | 3 5/8" | 1 3/4" | UB37 | UP37 | UG37 | US37 | |
| 1/2 x 2 1/2 | 1/2" | 3" | 4 1/8" | 2" | UB38 | UP38 | UG38 | US38 | U338 |
| 1/2 x 3 | 1/2" | 3 9/16" | 4 1/2" | 2" | UB39 | UP39 | UG39 | US39 | U339 |
| 1/2 x 3 1/2 | 1/2" | 4" | 5 1/2" | 2" | UB40 | UP40 | UG40 | ||
| 1/2 x 4 | 1/2" | 4 9/16" | 5 3/4" | 2" | UB41 | UP41 | UG41 | US41 | U341 |
| 1/2 x 5 | 1/2" | 5 9/16" | 7" | 2" | UB43 | UP43 | UG43 | US43 | U343 |
| 1/2 x 6 | 1/2" | 6 5/8" | 8" | 3" | UB44 | UP44 | UG44 | US44 | U344 |
| 1/2 x 8 | 1/2" | 8 3/4" | 10 1/4" | 3" | UB45 | UP45 | UG45 | US45 | |
| 1/2 x 10 | 1/2" | 10 7/8" | 13" | 3" | UB46 | UP46 | UG46 | ||
| 5/8 x 5 | 5/8" | 5 9/16" | 7" | 2" | UB50 | UP50 | UG50 | ||
| 5/8 x 6 | 5/8" | 6 3/4" | 8 3/4" | 3" | UB51 | UP51 | UG51 | ||
| 5/8 x 8 | 5/8" | 8 3/4" | 10 1/4" | 3" | UB52 | UP52 | UG52 | ||
| 5/8 x 10 | 5/8" | 10 7/8" | 13" | 3" | UB53 | UP53 | UG53 | ||
| 3/4 x 8 | 3/4" | 8 3/4" | 10 1/4" | 3" | UB56 | UP56 | UG56 | ||
| 3/4 x 10 | 3/4" | 10 7/8" | 13" | 3" | UB57 | UP57 | UG57 | ||
| 3/4 x 12 | 3/4" | 12 7/8" | 15" | 3 3/4" | UB58 | UP58 | UG58 | ||
3. Application
U-bolts are widely used and are mainly used in the following aspects.
1) installation of the building;
2) the connection of mechanical parts;
3) vehicles and ships;
4) Bridges, tunnels and railways.
5) Other occasions.
4. Advantages
It is a common fastener that provides high stretch, provides high retention and corrosion resistance, and does not require any coating. Competitive price with professional factory supply. The perfect fastening solution with 10 years of experience to solve your problem: a wide range of parts options. Durability testing and key technology design, use assured, worth buying.
5.More pictures
