B1306 Landmark Plaza No.1238 Hongxing Road JiaXing , ZheJiang , China 314001 | tony@hainafastener.com |
Place of Origin: | CHINA |
Brand Name: | HNF |
Certification: | ISO9001 |
Model Number: | 5/16 |
Minimum Order Quantity: | 1000PCS |
---|---|
Price: | Negotiation |
Packaging Details: | CARTON +PALLET |
Delivery Time: | 5-15DAYS |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 500 TON PRT MONTH |
Material: | SS316 | Application: | Building |
---|---|---|---|
Capacity: | 980Mpa | Finish: | PLAIN |
Origin: | China | Connection: | Common Bolt |
Thread: | UNC | Packaging Details: | Small Box/poly Bag + Carton + Pallet |
Standard: | ISO, DIN, ANSI, GB, Non-standard And More | Size Scope: | M4~M64, 3/16"-2 1/2" |
High Light: | u shaped bolt,metric u bolts |

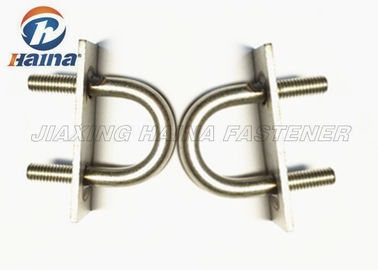

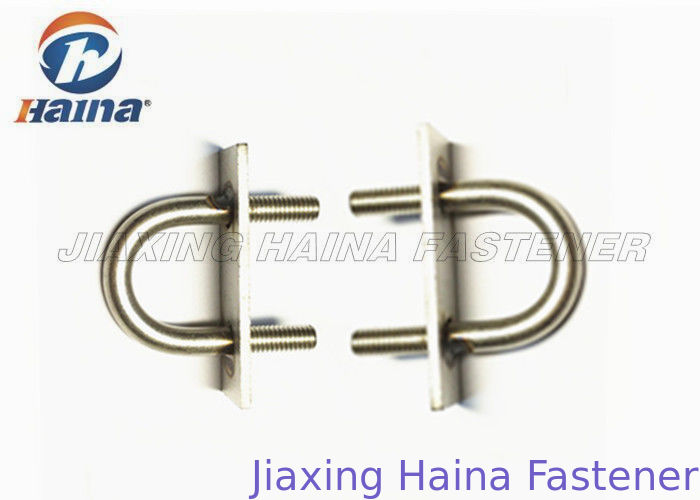

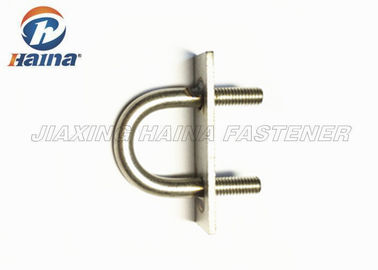

M4 ~ M64 DIN ANSI GB Standard Thread Round U Bolt With Plate
1. Product Description
Round U-Bolts are typically used for attaching pipe or steel round bar to a round wood or steel post. May be used to hang wrought iron pipe in mechanical installations and also be embedded in concrete as anchor bolts.
A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.
U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting.For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions of the U-bolt.
The U-Bolt with Plate is available in sizes ranging from 1/4" to 1/2" and includes 2 nuts. This U-bolt is UNC thread. It is made from grade 304 316 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications. Custom sizes are available.
2. Specification
Size: | 1/4”-1”,M6-M30 | ||||
Material: | Stainless Steel,SS304, SS316 | ||||
Thread: | M, UNC, UNF | ||||
Finish: | Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G | ||||
Packing: | bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand | ||||
Application: | Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating | ||||
Equipments: | Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester, 3D detector, Projector, Magnetic flaw detecter | ||||
Supply Ability: | 1000 tons per month | ||||
MinimumOrder: | 500kgs for each specification | ||||
Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP | ||||
Payment : | T/T, L/C,etc | ||||
Market: | South&north Amrica/Europe/East&South east Asia/ Australia and ect. | ||||
Professional: | More than 15 years experience in fasteners industry | ||||
Our Main market is North&South America and proficient in IFI standard. |
3. Application
U-bolts are useful in different sizes for building up a antenna construction;
- Mounting of round boom tubes to a mounting plate,
- Connection of signal or ground wires to tubes,
- Mounting of tubes at antenna rotators, etc.
4. Advantages
Our advantage: | One-stop shopping; | ||||
High quality; | |||||
Competitive price; | |||||
Timely delivery; | |||||
Technical support; | |||||
Supply Material and Test Reports; | |||||
Samples for free |

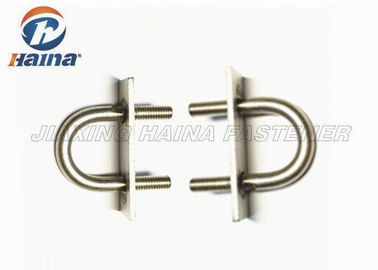

5. More pictures
