B1306 Landmark Plaza No.1238 Hongxing Road JiaXing , ZheJiang , China 314001 | tony@hainafastener.com |
Place of Origin: | China |
Brand Name: | HNF |
Certification: | ISO9001 |
Model Number: | DIN 934 |
Minimum Order Quantity: | 100000PCS |
---|---|
Price: | Negotiation |
Packaging Details: | CARTONS +PALLETS |
Delivery Time: | 5-15 DAYS |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 500TONS PER MONTH |
Item Name: | HEXAGON NUT | Diameter: | M16 |
---|---|---|---|
Material: | Stainless Steel 304 | Finish: | Plain |
Package Quantity: | 25KG | Pitch: | FINE |
Sample: | FREE | Grade: | A2,A4 |
Standard: | DIN,ANSI,ISO | Origin: | China |
High Light: | Hex Coupling Nut,Security Shear Nuts |

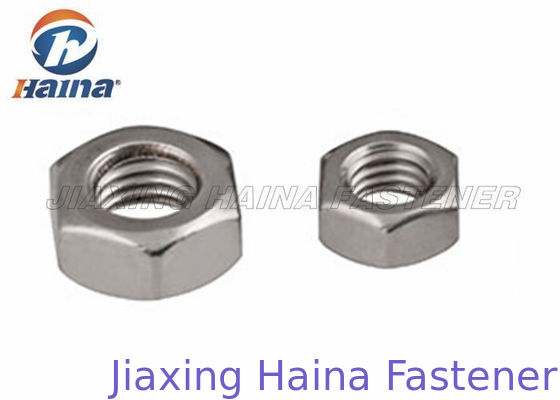

Stock Stainless Steel 304 M6 - M36 DIN 934 Hex Head Nuts For Fasteningtening
1. Product Description
Hex nuts (Hexagon nut) with bolts, screws with the use of the connecting mechanical fastening effect. 1 of the most widely used type hexagon nuts, C-level nut for rough surface, on to less precision machinery, equipment or structures; A and B grade nuts for relatively smooth surface of high precision machine , equipment or structure. Type 2 hex nut thickness m thick, used often require frequent disassembly occasions. Hexagon thin nut m thickness thinner, used to be connected to parts of the surface of the space-constrained applications.
2. Specification
D | Pitch | m | S | ||
max | min | max | min | ||
M1 | 0.25 | 0.8 | 0.55 | 2.5 | 2.4 |
M1.2 | 0.25 | 1 | 0.75 | 3 | 2.9 |
M1.4 | 0.3 | 1.2 | 0.95 | 3 | 2.9 |
M1.6 | 0.35 | 1.3 | 1.05 | 3.2 | 3.02 |
M1.7 | 0.35 | 1.4 | 1.15 | 3.5 | 3.38 |
M2 | 0.4 | 1.6 | 1.35 | 4 | 3.82 |
M2.3 | 0.45 | 1.8 | 1.55 | 4.5 | 4.32 |
M2.5 | 0.45 | 2 | 1.75 | 5 | 4.82 |
M2.6 | 0.45 | 2 | 2.15 | 5 | 4.82 |
M3 | 0.5 | 2.4 | 2.55 | 5.5 | 5.32 |
M3.5 | 0.6 | 2.8 | 2.9 | 6 | 5.82 |
M4 | 0.7 | 3.2 | 3.7 | 7 | 6.78 |
M5 | 0.8 | 4 | 3.7 | 8 | 7.78 |
M6 | 1 | 5 | 4.7 | 10 | 9.78 |
M7 | 1 | 5.5 | 5.2 | 11 | 10.73 |
M8 | 1/1.25 | 6.5 | 6.14 | 13 | 12.73 |
M10 | 1/1.25/1.5 | 8 | 7.64 | 17 | 16.73 |
M12 | 1.25/1.5/1.75 | 10 | 9.64 | 19 | 18.67 |
M14 | 1.5/2 | 11 | 10.3 | 22 | 21.67 |
M16 | 1.5/2 | 13 | 12.3 | 24 | 23.67 |
M18 | 1.5/2/2.5 | 15 | 14.3 | 27 | 26.16 |
M20 | 1.5/2/2.5 | 16 | 14.9 | 30 | 29.16 |
M22 | 1.5/2/2.5 | 18 | 16.9 | 32 | 31 |
M24 | 2/3 | 19 | 17.7 | 36 | 35 |
M27 | 2/3 | 22 | 20.7 | 41 | 40 |
M30 | 2/3.5 | 24 | 20.7 | 46 | 45 |
3. Application
Stainless steel hex nut is a type of fastener nut with an internal thread, With the bolt that having an externally threaded (studs or screw), make use of internal and external thread connection type, as two fasteners are connected (parts, building, etc.) use. However, depending on the specifications of stainless steel nuts and nut stainless steel models, its use is not the same, familiar with its use to be able to use it well. Click the following classification of various models use nuts.
Stainless steel hex nut is the most common one in the nuts, have to use wrenches, wrenches, box wrenches and combination wrenches or socket wrench disassembly. Among them, 1 hex nut type most widely used. 10% of type 2 hex nut height than about type 1 hex nut up, good mechanical properties.
4. Advantages
1. Best Quality and Best Service for all
2. Newest market information is updated for you
3. If you have any question about the products we are available any time
4.All production lines have adequate quality control and QA/QC inspectors work independently.Our products are approved FCC, CE, RoHS certificate.
5. Except for the Standard components, if you has special request for the components, we can customize for you.
6.If you have any advices for us, please inform us any time you can. We are commited to provide you with the best products.
7. Any defective item , The customer are required to provide us with the videos or the detailed pictures of the defective products, so that our engineers can analyse the problem in it and make a promotion. and good ones will be sent with your next order.
8. If you have new design product, you can send to us, then we design for you. After we make sure you got profit, we’ll start sell to other customer.
5. More pictures
