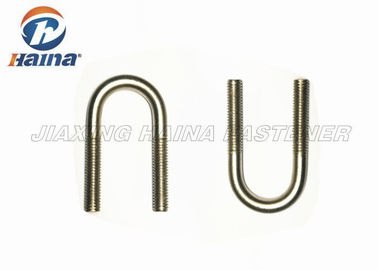

Standard 316 Stainless Steel U Bolts 5 / 8 Inch With Logo Customized

Standard 316 Stainless Steel U Bolts 5 / 8 Inch With Logo Customized

    • Standard 316 Stainless Steel U Bolts  5 / 8 Inch With Logo Customized
    • Standard 316 Stainless Steel U Bolts  5 / 8 Inch With Logo Customized
    • Standard 316 Stainless Steel U Bolts  5 / 8 Inch With Logo Customized
    • Standard 316 Stainless Steel U Bolts  5 / 8 Inch With Logo Customized
  • Standard 316 Stainless Steel U Bolts  5 / 8 Inch With Logo Customized

    Product Details:

    Place of Origin: CHINA
    Brand Name: HNF
    Certification: ISO9001
    Model Number: 5/8"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: Negotiation
    Packaging Details: CARTON +PALLET
    Delivery Time: 5-15DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: one container PRT MONTH
    Contact Now
    Detailed Product Description
    Material: SS304 Application: Building Up A Antenna Construction
    Capacity: 980Mpa Finish: PLAIN
    OEM: Available Logo: Customized For Baby Carrier Sling
    Thread: Standars Packaging Details: Small Box/poly Bag + Carton + Pallet
    Standard: ISO, DIN, ANSI, GB, Non-standard And More Size Scope: 5/8"

    5 / 8 “ Diameter 316 Stainless Steel Bolts Standard Round Bend U Type OEM





    1. Product Description



    A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.

    U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting.

    u-bolts, also known as u-type card.

    Pipeline installation commonly used as a bolt for fixing the pipe.

    1, the material properties of density, flexural strength, impact toughness, compressive strength, elastic modulus, tensile strength, heat resistance, color is determined according to the use environment.

    2, commonly used materials are carbon steel, galvanized steel, stainless steel. Wherein the stainless steel has 304,321,304L, 316,316l, 317,317L, 310S.

    3, the national standard u-bolt: JB / ZQ4321-1997



    2. Specification



    Standard 316 Stainless Steel U Bolts  5 / 8 Inch With Logo Customized

    SIZE   Ins. Width Ins. Length   Plain Zinc Plt HDG 304 SST 316 SST
    Dia. (C) (L) Thd
    (D)     (T)
    1/4 x 1/4 1/4" 9/16" 1 1/2" 1" UB1 UP1 UG1 US1 U31
    1/4 x 3/8 1/4" 3/4" 1 1/2" 1" UB2 UP2 UG2 US2 U32
    1/4 x 1/2 1/4" 15/16" 1 3/4" 1" UB3 UP3 UG3 US3 U33
    1/4 x 3/4 1/4" 1 1/8" 2" 1 1/8" UB4 UP4 UG4 US4 U34
    1/4 x 1 1/4" 1 3/8" 2 1/4" 1 1/8" UB5 UP5 UG5 US5 U35
    1/4 x 1 1/4 1/4" 1 3/4" 2 3/4" 1 1/8" UB6 UP6 UG6 US6 U36
    1/4 x 1 1/2 1/4" 2" 3" 1 1/4" UB7 UP7 UG7 US7 U37
    1/4 x 2 1/4" 2 7/16" 3 1/2" 1 1/2" UB8 UP8 UG8 US8 U38
    5/16 x 1/2 5/16" 15/16" 1 3/4" 1" UB11 UP11 UG11
    5/16 x 3/4 5/16" 1 1/8" 2" 1 1/8" UB12 UP12 UG12 US12
    5/16 x 1 5/16" 1 3/8" 2 7/16" 1 1/8" UB13 UP13 UG13 US13 U313
    5/16 x 1 1/4 5/16" 1 3/4" 2 3/4" 1 1/8" UB14 UP14 UG14 US14 U314
    5/16 x 1 1/2 5/16" 2" 3" 1 1/8" UB15 UP15 UG15 US15 U315
    5/16 x 2 5/16" 2 7/16" 3 1/2" 1 1/2" UB16 UP16 UG16 US16 U316
    3/8 x 1/2 3/8" 15/16" 1 3/4" 1" UB19 UP19 UG19
    3/8 x 3/4 3/8" 1 1/8" 2" 1 1/8" UB20 UP20 UG20 US20
    3/8 x 1 3/8" 1 3/8" 2 7/16" 1 1/8" UB21 UP21 UG21 US21 U321
    3/8 x 1 1/4 3/8" 1 3/4" 2 3/4" 1 1/4" UB22 UP22 UG22 US22 U322
    3/8 x 1 1/2 3/8" 2" 3" 1 1/4" UB23 UP23 UG23 US23 U323
    3/8 x 2 3/8" 2 7/16" 3 5/8" 1 3/4" UB24 UP24 UG24 US24 U324
    3/8 x 2 1/2 3/8" 3" 4 1/8" 2" UB25 UP25 UG25 US25 U325
    3/8 x 3 3/8" 3 9/16" 4 3/4" 2" UB26 UP26 UG26 US26 U326
    3/8 x 4 3/8" 4 9/16" 5 3/4" 2" UB28 UP28 UG28 US28 U328
    3/8 x 5 3/8" 5 9/16" 7" 2" UB29 UP29 UG29
    3/8 x 6 3/8" 6 5/8" 8" 3" UB30 UP30 UG30 US30
    3/8 x 8 3/8" 8 3/4" 10 1/4" 3" UB31 UP31 UG31 US31
    1/2 x 1 1/2 1/2" 2" 3" 1 1/4" UB36 UP36 UG36
    1/2 x 2 1/2" 2 7/16" 3 5/8" 1 3/4" UB37 UP37 UG37 US37
    1/2 x 2 1/2 1/2" 3" 4 1/8" 2" UB38 UP38 UG38 US38 U338
    1/2 x 3 1/2" 3 9/16" 4 1/2" 2" UB39 UP39 UG39 US39 U339
    1/2 x 3 1/2 1/2" 4" 5 1/2" 2" UB40 UP40 UG40
    1/2 x 4 1/2" 4 9/16" 5 3/4" 2" UB41 UP41 UG41 US41 U341
    1/2 x 5 1/2" 5 9/16" 7" 2" UB43 UP43 UG43 US43 U343
    1/2 x 6 1/2" 6 5/8" 8" 3" UB44 UP44 UG44 US44 U344
    1/2 x 8 1/2" 8 3/4" 10 1/4" 3" UB45 UP45 UG45 US45
    1/2 x 10 1/2" 10 7/8" 13" 3" UB46 UP46 UG46
    5/8 x 5 5/8" 5 9/16" 7" 2" UB50 UP50 UG50
    5/8 x 6 5/8" 6 3/4" 8 3/4" 3" UB51 UP51 UG51
    5/8 x 8 5/8" 8 3/4" 10 1/4" 3" UB52 UP52 UG52
    5/8 x 10 5/8" 10 7/8" 13" 3" UB53 UP53 UG53
    3/4 x 8 3/4" 8 3/4" 10 1/4" 3" UB56 UP56 UG56
    3/4 x 10 3/4" 10 7/8" 13" 3" UB57 UP57 UG57
    3/4 x 12 3/4" 12 7/8" 15" 3 3/4" UB58 UP58 UG58






    3. Application



    U-bolts are useful in different sizes for building up a antenna construction;
    - Mounting of round boom tubes to a mounting plate,
    - Connection of signal or ground wires to tubes,
    - Mounting of tubes at antenna rotators, etc.



    4. Advantages



    Key Benefit:
    Easy to Install: the tilt-in module can be put into the extruded rail from all kind of location, from residential and large commercial, right throALEXh to utility scale and can be high pre-assembly with the clamp to minimize the time and cost of installation. The U bolt with the cap can fix the pipe easy and quick.
    Durability: the material of the components is Anodized Aluminum6005-T5 & SUS 304, except for the nuts and hook is made of stainless steel. Using galvanized tube fix with the ground, material is Q235, surface treatment is hot-galvanized, the thickness of the film more than 80um, which ensure products quality. The connection between the rails is a reliable splice bar, which makes the pole structure firmer, the wind resist can reach up to 55m/s, 25 years product life cycle of structure and the warranty is 10 years.
    Good compatibility: Designed as a universal mounting system, our mounting system is compatible with most of the major framed PV modules on the market.
    High quality: strict quality control cover the entire process from material selection and manufacturing to pre-construction ensures optimum life of our mounting system.



    5.More pictures

    Standard 316 Stainless Steel U Bolts  5 / 8 Inch With Logo Customized
