B1306 Landmark Plaza No.1238 Hongxing Road JiaXing , ZheJiang , China 314001 | tony@hainafastener.com |
Place of Origin: | Jiaxing, China |
Brand Name: | HNF |
Certification: | ISO9001 |
Model Number: | M6-M20 |
Minimum Order Quantity: | 2000pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Small White Box+Cartons+Pallets |
Delivery Time: | 10-20 days |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Supply Ability: | 600 ton per month |
Name: | Medium Duty Expansion Anchor Bolt With Flange Round Hook Head Style | Head Style: | Round Hook |
---|---|---|---|
Dia.: | M6-M20 | Finish: | Yellow Zinc Plated |
Specification: | M6-M20. | Material: | Carbon Steel |
Third-Party Certificate: | SGS | Other Name: | Expansion Bolt, Bolt Anchor, Anchor Bolt, Sleeve Anchors |
Thread Measurement: | MM And Inch | Certification: | ISO9001 |
High Light: | Cement Anchor Bolts,Concrete Fixing Bolts |

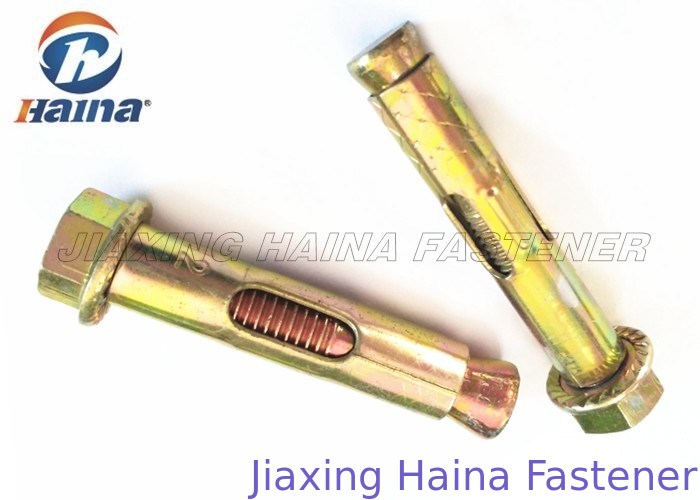

Medium Duty Expansion Anchor Bolt with Flange Round Hook Head Style
Description
Dyna bolt are also called Versatile, Medium-Duty Sleeve Anchors.
Sleeve type anchors feature a split expansion sleeve over a threaded stud bolt body and integral expander, nut and washer. Anchors are made of Plated Carbon Steel, or Type 18-8 Stainless Steel.
Anchors should be installed with carbide tipped hammer drill bits made in accordance to ANSI B212.15-1994. Anchors are tested to ASTM E488 criteria.
Anchor diameter equals hole diameter.
Available in hex head and six other head styles .
Available 1/4 - 3/4" diameter up to 6-1/4" length .
Zinc plated carbon steel and 304 stainless steel .
Provides full 360° hole contact over large area and reduces concrete stress .
Heavy-loading capacity .
Preassembled for faster, easier installations .
Dynabolt can be installed through object to be fastened .
Sleeve design improves holding power .
No pre-spotting of holes necessary.
Specification
Item | Anchor | Max. Fixture | Item | Anchor | Max. Fixture |
Size(mm) | Thickness | Size(mm) | Thickness | ||
1 | 6.5 x 18 | 3 | 13 | 10 x 100 | 62 |
2 | 6.5 x 25 | 4 | 14 | 12 x 60 | 15 |
3 | 6.5 x 36 | 8 | 15 | 12 x 75 | 27 |
4 | 6.5 x 56 | 26 | 16 | 12 x 100 | 52 |
5 | 6.5 x 75 | 45 | 17 | 12 x 120 | 70 |
6 | 8 x 40 | 8 | 18 | 12 x 130 | 80 |
7 | 8 x 65 | 35 | 19 | 16 x 65 | 20 |
8 | 8 x 85 | 55 | 20 | 16 x 110 | 65 |
9 | 10 x 40 | 6 | 21 | 16 x 145 | 100 |
10 | 10 x 50 | 12 | 22 | 20 x 75 | 25 |
11 | 10 x 60 | 15 | 23 | 20 x 107 | 57 |
12 | 10 x 75 | 27 | 24 | 20 x 151 | 101 |
Item | Anchor | Max. Fixture | Item | Anchor | Max. Fixture |
Size(inch) | Thickness | Size(inch) | Thickness | ||
1 | 1/4 x 1- 3/8 | 1" | 12 | 5/8 x 2 - 1/4 | 2" |
2 | 1/4 x 2- 1/4 | 1" | 13 | 5/8 x 3 | 2" |
3 | 5/16 x 1 - 1/2 | 1" | 14 | 5/8 x 4 - 1/4 | 2" |
4 | 5/16 x 2 - 1/2 | 1" | 15 | 5/8 x 5 - 3/4 | 2" |
5 | 3/8 x 1 - 7/8 | 1 - 1/4" | 16 | 5/8 x 6 | 2" |
6 | 3/8 x 3 | 1 - 1/4" | 17 | 3/4 x 2 - 1/2 | 2" |
7 | 3/8 x 4 | 1 - 1/4" | 18 | 3/4 x 4 -1/4 | 2" |
8 | 1/2 x 2 - 1/4 | 1 - 1/2" | 19 | 1/4 x 2 - 1/4 | 2" |
9 | 1/2 x 3 | 1 - 1/2" | 20 | 1/4 x 3 | 1" |
10 | 1/2 x 4 | 1 - 1/2" | 21 | 1/4 x 4 | 1" |
11 | 1/2 x 6 | 1 - 1/2" |
The dyna bolt, which is also called anchor bolt, sleeve anchor, is suitable for concrete and dense stone, high strength cement, metal constructions, metal profiles, base plate, a support plate, brackets, railings, windows, walls, machines, girders, beams, brackets, and so on. It includes a flange nut and a flat washer to make the installation more firm.
Installation
Advantages
1. Applying anchor bolt, expension bolt. Wedge anchor, sleeve anchor. EtcSleeve anchor Dyna bolt
2. Anchors expert
3. High quality
4. Reasonable price
5. Rich export experience
