Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts

Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts

  • Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts
  • Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts
  • Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts
  • Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts
Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts
Product Details:
Place of Origin: China
Brand Name: HNF
Certification: ISO9001
Model Number: DIN/ASME/ANSI
Payment & Shipping Terms:
Minimum Order Quantity: 100000PCS
Price: Negotiation
Packaging Details: CARTONS +PALLETS
Delivery Time: 5-15 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500TONS PER MONTH
Contact Now
Detailed Product Description
Item Name: Black HEX NUT Diameter: M16
Material: 45# Finish: Black
Package Quantity: 25KG Pitch: Corse
Sample: In-stock Alternative Products Grade: 8.8 Grade
Standard: DIN,ANSI,ISO Origin: China
High Light:

hex head nut

,

ASTM A563

,

M16 nut

Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts





1. Product Description



Anodic oxidation and chemical into black oxide black, anodized black to be powered, the ultimate goal is to generate the metal surface oxide film is a dense black, to beautify the appearance, improve corrosion effect.

Hex nuts are six sided general purpose fasteners with internal screw threads.

The most common hexagonal fastener with internal threads that screws on to the shank of a bolt or a hex cap screw.

Hex nuts (Hexagon nut) with bolts, screws with the use of the connecting mechanical fastening effect. 1 of the most widely used type hexagon nuts, C-level nut for rough surface, on to less precision machinery, equipment or structures; A and B grade nuts for relatively smooth surface of high precision machine , equipment or structure. Type 2 hex nut thickness m thick, used often require frequent disassembly occasions. Hexagon thin nut m thickness thinner, used to be connected to parts of the surface of the space-constrained applications.



2. Specification



Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts 0

Nuts Size Pitch s inchAcross Flat s mmAcross Flat m mmThickness e (min) mmAcross Corner Approx. weightkg/100
1/4 UNC 20 7/16" 11.1 5.06 12.39 0.32
5/16 UNC 18 1/2" 12.7 6.07 14.15 0.47
3/8 UNC 16 9/16" 14.3 8.03 15.95 0.69
7/16 UNC 14 11/16" 17.5 9.05 19.05 1.3
1/2 UNC 13 3/4" 19.1 11.01 21.34 1.6
5/8 UNC 11 15/16 23.8 13.09 26.69 3.2
3/4 UNC 10 1.1/8 28.6 16.03 31.85 5.3
7/8 UNC 9 1.5/16 33.3 19.01 37.21 9.2
1 UNC 8 1.1/2 38.1 21.08 42.55 14



3. Application



In normal use, a nut-and-bolt joint holds together because the bolt is under a constant tensile stress called the preload. The preload pulls the nut threads against the bolt threads, and the nut face against the bearing surface, with a constant force, so that the nut cannot rotate without overcoming the friction between these surfaces. If the joint is subjected to vibration, however, the preload increases and decreases with each cycle of movement. If the minimum preload during the vibration cycle is not enough to hold the nut firmly in contact with the bolt and the bearing surface, then the nut is likely to become loose.



4. Advantages



1. Best Quality and Best Service for all

2. Newest market information is updated for you

3. If you have any question about the products we are available any time

4.All production lines have adequate quality control and QA/QC inspectors work independently.Our products are approved FCC, CE, RoHS certificate.

5. Except for the Standard components, if you has special request for the components, we can customize for you.

6.If you have any advices for us, please inform us any time you can. We are commited to provide you with the best products.

7. Any defective item , The customer are required to provide us with the videos or the detailed pictures of the defective products, so that our engineers can analyse the problem in it and make a promotion. and good ones will be sent with your next order.

8. If you have new design product, you can send to us, then we design for you. After we make sure you got profit, we’ll start sell to other customer.

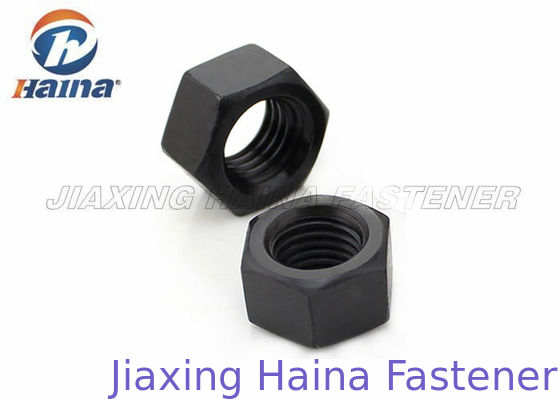

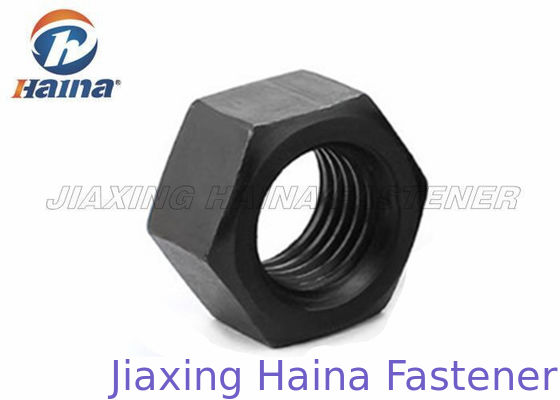

5. More pictures



Carbon Steel 8.8 Grade M8 M10 M12 M16 Diameter Black ASTM A563 Hex Head Nuts 1
