Place of Origin: | CN |
Brand Name: | HNF |
Certification: | ISO9001:2008 |
Model Number: | M4-M56 3/16"-3" |
Minimum Order Quantity: | 500 kg |
---|---|
Price: | Negotiation |
Packaging Details: | Common export packing. Cartons+Pallets, or customized packing. Bag Packing |
Delivery Time: | 10-20 days |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Supply Ability: | 500 tons per month |
Product: | Hex Head Nut | Head Drive: | Hexagonal |
---|---|---|---|
Standard: | DIN934 ASTM A194 DIN ANSI JIS Bsw | Surface: | Yellow Zinc Finished |
Material: | Alloy Steel Carbon Steel | Head: | Hex Head |
HS Code: | 731816 | Inspection: | 100%QC Steps Inspect Before Shipment |
Connection: | Common Nut | ||
High Light: | Carbon Steel Nuts,Hex Flange Nuts |

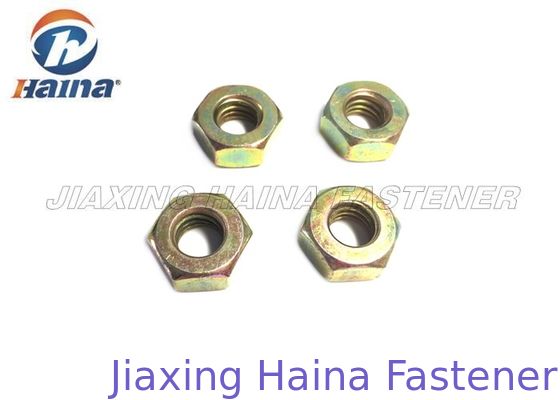

Carbon Steel Alloy Steel DIN934 ASTM A194 GR 2H M4-M56 3/16"-3" or Customize Zinc Plated Hex Head Nut
Description:
Nut fastener bolt or screw together, so it plays the role of part A in the original all manufacturing machinery must be used. Nut species variety, we have common national standard, British standard, American standard, Japanese subject nut . According to different materials, the nuts can be divided into carbon steel, high strength steel, stainless steel, steel and other major types of product attributes corresponding to countries with different standards numbers are divided into ordinary, non-standard, (old) GB, the new national standard, American , English, German standard. Different sizes, ranging from threads into different specifications. Generally GB, German standard represented by M (for example, M8, M16), American, British is expressed as a fraction or # specifications (such as # 8, # 10, 1 / 4,3 / 8) fasteners, nuts are parts of machinery and equipment will be closely linked through threaded inside, the same size nuts and screws, to connect together, for example, only M4-0.7 nut and the screw with M4-0.7 of ( in nut, M4 refers to the inner diameter of the nut is about 4mm, 0.7 refers to the distance between the two screw thread 0.7mm); US-made products also, for example, 1 / 4-20 screw and nut only 1 / 4-20 with (1/4 refers to the inner diameter of approximately 0.25 inch nut, 20 refers to every inch, 20 teeth).
Item | Carbon Steel Alloy Steel DIN934 ASTM A194 GR 2H M4-M56 3/16"-3" or Customize Hex Head Nut |
size | M4-M56 3/16"-3" |
Material Available | 1. Steel:C45(K1045), C46(K1046),C20 2. Stainless Steel: SUS304, SUS316 |
Surface treatment | Zinc plated, passivate, Chrome plated, Electro plating, Black, Plain |
Heat treatment | Tempering, Hardening, Spheroidizing |
Tolerance | 6g |
Packing | Plastic bags + carton box + pallet |
Lead time | About 15-25 days. Reality time is according to customer's requirement |
Address | Jiaxing, China |
Nominal hole | Pitch, | Across flats, | External diameter; | Height, H (mm) | ||||||
diameter, D(mm) | P (mm) | A/F (mm) | across corners, | |||||||
1st | 2nd | Coarse | Fine | ISO | DIN | JIS | A/C (mm) | Hex nut | Jam nut | Nylon nut |
choice | choice | |||||||||
1 | 0.25 | 2.5 | ||||||||
1.2 | 0.25 | |||||||||
1.4 | 0.3 | |||||||||
1.6 | 0.35 | 3.2 | ||||||||
1.8 | 0.35 | |||||||||
2 | 0.4 | 4 | 1.6 | 1.2 | - | |||||
2.5 | 0.45 | 5 | 2 | 1.6 | - | |||||
3 | 0.5 | 5.5 | 6.4 | 2.4 | 1.8 | 4 | ||||
3.5 | 0.6 | 6 | ||||||||
4 | 0.7 | 7 | 7 | 7 | 8.1 | 3.2 | 2.2 | 5 | ||
5 | 0.8 | 8 | 8 | 8 | 9.2 | 4 | 2.7 | 5 | ||
6 | 1 | 0.75 | 10 | 10 | 10 | 11.5 | 5 | 3.2 | 6 | |
7 | 1 | 11 | 5.5 | 3.5 | - | |||||
8 | 1.25 | 1 | 13 | 13 | 12 | 15 | 6.5 | 4 | 8 | |
10 | 1.5 | 1.25 or 1 | 16 | 17 | 14 | 19.6 | 8 | 5 | 10 | |
12 | 1.75 | 1.5 or 1.25 | 18 | 19 | 17 | 22.1 | 10 | 6 | 12 | |
14 | 2 | 1.5 | 21 | 22 | 19 | 11 | 7 | 14 | ||
16 | 2 | 1.5 | 24 | 24 | 22 | 27.7 | 13 | 8 | 16 | |
18 | 2.5 | 2 or 1.5 | 27 | 15 | 9 | 18.5 | ||||
20 | 2.5 | 2 or 1.5 | 30 | 30 | 34.6 | 16 | 10 | 20 | ||
22 | 2.5 | 2 or 1.5 | 32 | |||||||
24 | 3 | 2 | 36 | 41.6 | 19 | |||||
27 | 3 | 2 | 41 | |||||||
30 | 3.5 | 2 | 46 | 53.1 | 24 | |||||
33 | 3.5 | 2 | ||||||||
36 | 4 | 3 | 55 | 63.5 | 29 | |||||
39 | 4 | 3 | ||||||||
42 | 4.5 | 3 | ||||||||
45 | 4.5 | 3 | ||||||||
48 | 5 | 3 | ||||||||
52 | 5 | 4 | ||||||||
56 | 5.5 | 4 | ||||||||
60 | 5.5 | 4 | ||||||||
64 | 6 | 4 |
Application:
Hex Head Nut is most common in usage, which is mainly used for fastener one thing by the nuts. And it has requirement of the torque, and we will control the torque for customers.
Advantages:
1. Over 6 years of manufactiring experience
2. Many kinds of stock
3. Competitive price
4. Quality control system
5. Sample available
6. Professional Workers
7. OEM workable
