SS304 SS316 ASTM F593E Long full thread Structural steel hex Bolt

Product Details:

Place of Origin:	China
Brand Name:	HNF
Certification:	ISO9001
Model Number:	1X1-1/2

Payment & Shipping Terms:

Minimum Order Quantity:	2000
Price:	Negotiation
Packaging Details:	Cartons+Pallets or According to customers' requestment
Delivery Time:	5-20DAYS
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Name:	SS304 SS316 ASTM F593E Long Full Thread Structural Steel Hex Bolt	Size:	ASTM F593E 1/4-5/8 F593H 3/4-1-1/2
Material:	SS316	Production Process:	Hot Forging
Type:	Hexagon	Usage:	Building
High Light:	nut Bolt , hex Bolt , nuts and bolts

SS304 SS316 ASTM F593E Long full thread Structural steel hex Bolt

Product Description

A ANSI 304 stainless steel hex Head bolt that is produced as ASTM F593 Group 1 must have additional processes performed that exceed the requirements of A193 grade B8. These bolts must be stamped with manufacturer’s identifier, “F593″, and the proper condition designation, and if the bolts are hot formed, they must also be carbide solution annealed. Additionally, F593 bolts must pass an intergranular corrosion test, which is not required when bolts are ordered as type 304 stainless steel or under the ASTM A193 grade B8 specification. F593 does not have the same 8UN series thread requirement above 1″ diameter as A193 grade B8, and is typically provided with Unified National Coarse threads. The F593 specification is also characterized by a maximum diameter of 1-1/2”.

F593 specification covers the chemical and mechanical requirements for stainless steel bolts, hex cap screws and studs in diameters ranging from 1/4" to 1-1/2" inclusive.Seven groups of stainless steel alloys are covered, including ten austenitic, two ferritic, four martensitic, and one precipitation hardening. These fasteners are for general purpose usage and are available in seven alloy groups. Please contact us for more details by email info@hainafastener.com

F593 Alloy Groups

Group	Alloy	Condition
1	303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se	(CW) Cold worked
2	316, 316L	(CW) Cold worked
3	321, 347	(CW) Cold worked
4	430, 430F	(CW) Cold worked
5	410, 416, 416Se	(H) Hardened and Tempered
6	431	(H) Hardened and Tempered
7	630 (17-4)	(AH) age Hardened

F593 Chemical Composition

Element	Group 1 ( AISI 304 )	Group 2 ( AISI 316 )
Carbon	0.08%	0.08%
Manganese, min	2.00%	2.00%
Phosphorus, max	0.045%	0.045%
Sulfur, max	0.030%	0.030%
Silicon	1.00%	1.00%
Chromium	18.0 to 20.0%	16.0 to 18.0%
Nickel	8.0 to 10.5%	10.0 to 14.0%
Copper	1.00%
Molybdenum		2.00 to 3.00%

F593 Mechanical Requirements

Alloy Group	Condition	Alloy Mechanical Property Marking	Nominal Dia,in.	Tensile Strength, ksi min	Yield strength ksi min	Rockwell Hardness
1	AF	F593A	1/4 to 1-1/2	65 to 85	20	B85 max
	A	F593B	1/4 to 1-1/2	75 to 100	30	B65 to 95
	CW1	F593C	1/4 to 5/8	100 to 150	65	B95 to C32
	CW2	F593D	3/4 to 1-1/2	85 to 140	45	B80 to C32
2	AF	F593E	1/4 to 1-1/2	65 to 85	20	B85 max
	A	F593F	1/4 to 1-1/2	75 to 100	30	B65 to 95
	CW1	F593G	1/4 to 5/8	100 to 150	65	B95 to C32
	CW2	F593H	3/4 to 1-1/2	85 to 140	45	B80 to C32

F593 Recommended Hardware

Nuts	Washers
F594	SS304 or SS316

More Pictures

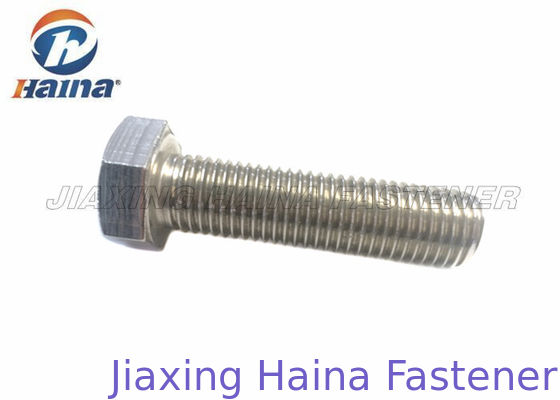

SS304 SS316 ASTM F593E Long full thread Structural steel hex Bolt 0

Certification

Through scientific management, Jiaxing Haina fastener Ltd company has been obtained ISO9000 certificate of Quality Managerment System, SGS and BV international certificate system of Make in China.

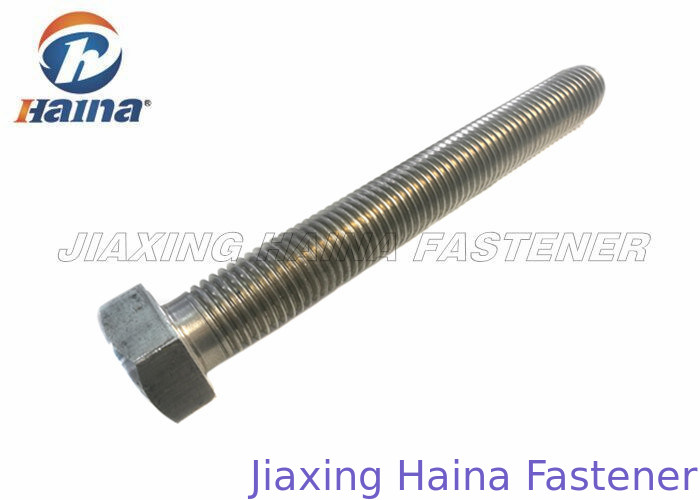

SS304 SS316 ASTM F593E Long full thread Structural steel hex Bolt 1
