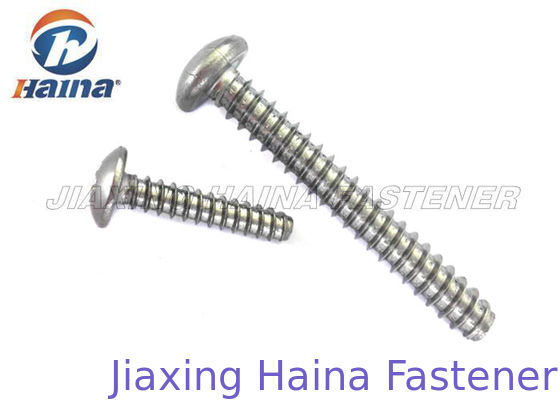

Six Lobe Torx Cheese head Pan Head Self Tapping Screws with hexalobular slot

Product Details:

Place of Origin:	CN
Brand Name:	HNF
Certification:	ISO
Model Number:	M10 M12 M14

Payment & Shipping Terms:

Minimum Order Quantity:	20000pcs
Price:	Negotiation
Packaging Details:	small box+Carton+wooden case
Delivery Time:	3-7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500ton per month

Contact Now

Detailed Product Description

Standard:	ISO 14583. Nonstandard	Specification:	Stainless Steel, Carbon Steel, A2 A4 304 316
Sample:	Free	Head:	Torx
Connection:	Common	HS:	7318150000
Technical:	Forge	Thread:	Tapping Without Point
CO:	CN
High Light:	Black Self Tapping Screws , Pan Head Framing Screws

Six Lobe Torx Cheese head Pan Head Self Tapping Screws with hexalobular slot

Description:

Six Lobe Torx Cheese head Pan Head with hexalobular slot Self Tapping Metal Screws. The cross is a cross with a fine blanking, stamping made. For the material, phillips pan head screws are made of iron which is into carbon steel, stainless steel is also divided. There are three types of carbon steel, low carbon steel, middle carbon steel, high carbon steel. Stainless steel also has different type: stainless steel SUS201 stainless steel SUS304, stainless steel SUS316, stainless steel SUS404 and the like.

Hexagon flower-shaped pan head self-tapping screws generally refers to the thread is self-tapping, so self-tapping effect and does not require the use of complex nut.

Six Lobe Torx Cheese head Pan Head with hexalobular slot Self Tapping Metal Screws are used for non-metal or soft metal, do not hit the hole and tapping low; self-tapping screws are pointed, so as to "self-tapping"; Ordinary screw heads are flat. The self-tapping screws is to drill hole without tap holes. The screws are different with general screws.

Specifications and technical performance

Product name	Six Lobe Torx Cheese head Pan Head Self Tapping Screws with hexalobular slot
Brand name	HaiNa
Size	all common size
Standard	non-standard products
Surface	AS customs required
Packing	bulk, small bag ,carton ,pallet as customer's required
Delivery	5-15 days
Payment	30%T/T in advance,balance after copy of BL
MOQ	20000pieces
Service	If you have any problems ,contact us any time
OEM	Available

mechanical property			strength grade
			Gr 4.6	Gr 4.8	Gr 6.9
Rm	min.	kgf/mm2	40		60
		N/mm2*	392		588
	max.	kgf/mm2	55		80
		N/mm2	539		785
HB	min.	HB	110		120
	max.	HB	170		245
Rockwell hardness	min.	HRB	62		88
		HRC	-		-
	max.	HRB	88		102
		HRC	-		-
HV30	min.		110		170
	max.		170		245
Rs	min.	kgf/mm2	24	32	-
		N/mm2*	235	314	-
	min.	kgf/mm2	-	-	54
R0.2		N/mm2*	-	-	530
Sp		Sp/Rs	0.94	0.94	0.88

		kgf/mm2	22.6	29.1	47.5

		N/mm2	222	286	466

elongation at break	min.Percent		25	14	12

Application:

The torx tapping screws are used on coonection metal, and other parts. It is a kind of fastener. Self-tapping screws are used for connecting thin metal plate (steel, saws, etc.) The first connection is to make a hole, and then put the self-tapping screws into the plate. Since the self-tapping screw thread is made with high hardness, so the sharp point can attack a threaded bottom.

Advantages:

1. With years of export experience along with excellent quality, good services and competitive prices, Jiaxing Haina has won numerous customers' trust and support.

2. Advanced equipment and reliable raw materials to produce products to meet customer’s quality requirements.

3. Show room of samples. All kinds of screws.

4. Service: 24 hours

5. One stop Service
