980Mpa Hardware Fasteners Stainless Steel U Bolts Standard UNC Thread

980Mpa Hardware Fasteners Stainless Steel U Bolts Standard UNC Thread

    • 980Mpa Hardware Fasteners Stainless Steel U Bolts Standard UNC Thread
    • 980Mpa Hardware Fasteners Stainless Steel U Bolts Standard UNC Thread
    • 980Mpa Hardware Fasteners Stainless Steel U Bolts Standard UNC Thread
    • 980Mpa Hardware Fasteners Stainless Steel U Bolts Standard UNC Thread
  • 980Mpa Hardware Fasteners Stainless Steel U Bolts Standard UNC Thread

    Product Details:

    Place of Origin: CHINA
    Brand Name: HNF
    Certification: ISO9001
    Model Number: 1/2"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: Negotiation
    Packaging Details: CARTON +PALLET
    Delivery Time: 5-15DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 TON PRT MONTH
    Contact Now
    Detailed Product Description
    Material: SS316 Application: Building Up A Antenna Construction
    Capacity: 980Mpa Finish: PLAIN
    Origin: China Connection: Common Bolt
    Thread: Standars Packaging Details: Small Box/poly Bag + Carton + Pallet
    Standard: ISO, DIN, ANSI, GB, Non-standard And More Size Scope: M4~M64, 3/16"-2 1/2"

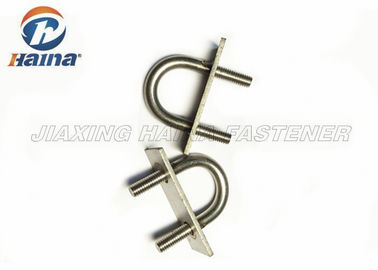

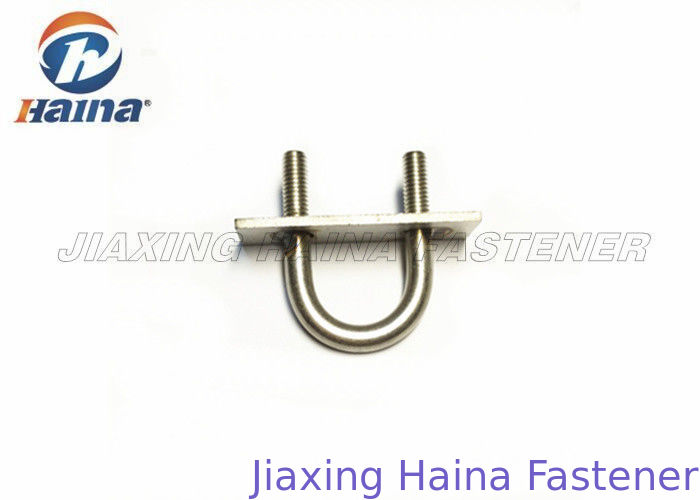

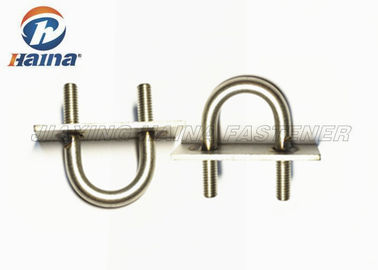

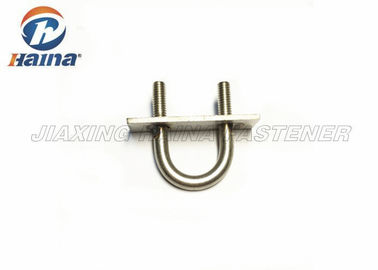

    Stainless Steel 316 Standard UNC Thread Round Bend U - Bolts Clamp with Plate





    1. Product Description



    A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.

    U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting.

    The U-Bolt with Plate is available in sizes ranging from 1/4" to 1/2" and includes 2 nuts. This U-bolt is UNC thread. It is made from grade 304  316 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications. Custom sizes are available.



    2. Specification





    U-Bolt Size Plate Size Rod Size Part # Part # Part #
    1/2” 3/16” x 3/4” x 1 7/8” 1/4” UP-1/2 UP-Plate – 1/2 UPO-1/2
    3/4” 3/16” x 3/4” x 2 1/8” 1/4” UP-3/4 UT-Plate – 1 UTO-1
    1” 3/16” x 3/4” x 2 1/2” 1/4” UP-1 UP-Plate – 1 UPO-1
    1 1/4” 1/4” x 1” x 2 7/8” 5/16” UP-1.25 UT-Plate – 1.5 UPO-1.25
    1 1/2” 1/4” x 1” x 3 1/8” 5/16” UP-1.5 UP-Plate – 1.5 UPO-1.5
    2” 1/4” x 1” x 3 5/8” 5/16” UP-2 UP-Plate – 2 UPO-2
    2 1/2” 1/4” x 1” x 4 5/32” 5/16” UP-2.5 UP-Plate – 2.5 UPO-2.5
    3” 1/4” x 1 1/4” x 5 1/8” 3/8” UP-3 UP-Plate – 3 UPO-3
    4” 1/4” x 1 1/4” x 6 1/8” 3/8” UP-4 UP-Plate – 4 UPO-4
    5” 3/8” x 1 1/2” x 7 1/16” 3/8” UP-5 UP-Plate – 5 UPO-5
    6” 3/8” x 1 1/2” x 8 1/4” 3/8” UP-6 UP-Plate – 6 UPO-6
    8” 3/8” x 2” x 10 1/8” 3/8” UP-8 UP-Plate – 8 UPO-8
    10” 3/8” x 2” x 12 1/4” 3/8” UP-10 UP-Plate – 10 UPO-10
    12” * 1/4” x 1 1/2” x 14 5/8” 1/2” UP-12 UP-Plate – 12 UPO-12





    3. Application



    U-bolts are useful in different sizes for building up a antenna construction;
    - Mounting of round boom tubes to a mounting plate,
    - Connection of signal or ground wires to tubes,
    - Mounting of tubes at antenna rotators, etc.



    4. Advantages


    Easy to Install: the tilt-in module can be put into the extruded rail from all kind of location, from residential and large commercial, right throALEXh to utility scale and can be high pre-assembly with the clamp to minimize the time and cost of installation. The U bolt with the cap can fix the pipe easy and quick.
    Durability: the material of the components is Anodized Aluminum6005-T5 & SUS 304, except for the nuts and hook is made of stainless steel. Using galvanized tube fix with the ground, material is Q235, surface treatment is hot-galvanized, the thickness of the film more than 80um, which ensure products quality. The connection between the rails is a reliable splice bar, which makes the pole structure firmer, the wind resist can reach up to 55m/s, 25 years product life cycle of structure and the warranty is 10 years.
    Good compatibility: Designed as a universal mounting system, our mounting system is compatible with most of the major framed PV modules on the market.
    High quality: strict quality control cover the entire process from material selection and manufacturing to pre-construction ensures optimum life of our mounting system.

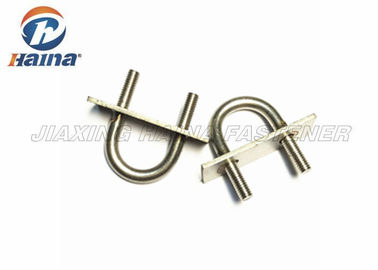

    5. More pictures

    980Mpa Hardware Fasteners Stainless Steel U Bolts Standard UNC Thread
