Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts

Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts

  • Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts
  • Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts
  • Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts
  • Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts
Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts
Product Details:
Place of Origin: Zhejiang, China
Brand Name: HNF
Certification: ISO9001:2008
Model Number: DIN
Payment & Shipping Terms:
Minimum Order Quantity: 30000 pcs
Price: Negotiation
Packaging Details: Carton and Pallet or Customize Packing
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350 ton per month
Contact Now
Detailed Product Description
Product Name: Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts Finish: Plain
Material: SS304 Advantage: Good Corrosion Resistance
Thread: Coarse Thread Thread Size: M8
Fastener Thread Direction: Right Hand Pitch: 1.25mm
High Light:

Stainless Steel 316 Nut

,

Nuts

,

Plain Finish Nuts

Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts



1.Product Description

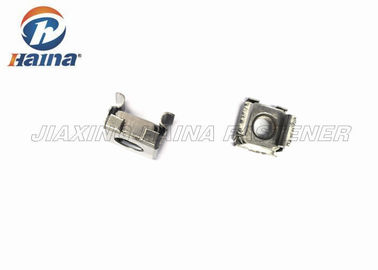

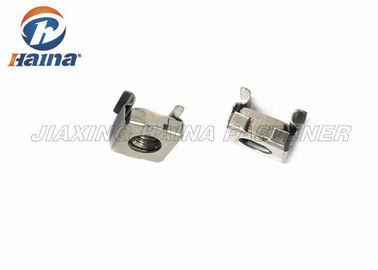

A cage nuts also called a captive or clip nuts, which consists of a square nut in a spring steel cage which covered around the nut. The cage has two wings that when compressed allow the cage to be inserted into the square holes. When the wings are released, they hold the nut in position behind the hole.

The cage nut can be used wherever a square hole can be punched. An older alternative style of cap nut uses a spring clip that holds the nut and slides on the edge of a thin sheet. While this type of cage nut can only position the nut a fixed distance from the edge of a thin plate, it works equally well with square and round holes. A patent for such a nut was granted in 1946.

Using cage nuts offers several benefits over threaded holes. It has a range of choice of nut and bolts size in the field, long after the equipment has been manufactured. If a screw is over-tightened, the nut can be replaced, unlike a pre-threaded hole, where a hole with stripped threads becomes unusable. Then the cage nuts are easy to use on materials which is too thin or soft to be threaded.

The nut is usually slightly loose in the cage to allow for minor adjustments. This reduces that the threads will be during equipment installation and removal. The dimensions of the spring steel clip determines thickness of the panel to which the nut may be clipped. In the case of square-hole cage nuts, the clip dimensions determine the range of hole sizes to which the clip will securely hold the nut. In the case of slide-on cage nuts, the clip dimensions determine the distance from the panel edge to the hole.

Different types of cage nuts are available.



2. Specification



Diameter Pitch Outter Dia. Length Width Height
M8 1.25mm 10.5mm 16.5 15.5mm 12mm



More details:



Product Dimensions M8x1.25
Free Sample Available, shipping need to be charged only
Thread type Coarse Thread
Advantages

Corrosion Resistance, Suitable for Many Situations



3.Application



It has a range of choice of nut and bolts size in the field, long after the equipment has been manufactured. If a screw is over-tightened, the nut can be replaced, unlike a pre-threaded hole, where a hole with stripped threads becomes unusable. General Fastening applications where need high strength and superior corrosion resistance. For the joining process required pressure is usually applied manually by the operator or by the machine. Square weld nut is designed for through-hole applications and are not self-positioning, so the need for additional installation or jigging dowel precise location.



4. Advantages



The cage nut can be used wherever a square hole can be punched. An older alternative style of cap nut uses a spring clip that holds the nut and slides on the edge of a thin sheet. While this type of cage nut can only position the nut a fixed distance from the edge of a thin plate, it works equally well with square and round holes.  Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.



5. More pictures



Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts 0Coarse Thread Stainless Steel 316 304 M8 X 1.25 Plain Finish Nuts 1
