A2 A4 Stainless Steel Hex Cap Screw Super half thread Long Hex Bolt

Product Details:

Place of Origin:	CHINA
Brand Name:	HNF
Certification:	ISO9001
Model Number:	GB

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.5-1USD PER PCS
Packaging Details:	CARTON +PALLET
Delivery Time:	5-15DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 TON PRT MONTH

Contact Now

Detailed Product Description

Material:	A2-70,A4-70	Application:	Construction
Capacity:	980Mpa	Finish:	PLAIN With Passivating Treatment
OEM:	Available	Logo:	HNF
Other Name:	Hex Cap Screw	Packaging Details:	Small Box/poly Bag + Carton + Pallet
Standard:	ISO, DIN, ANSI, GB, Non-standard And More	Size Scope:	1/4"x1"
High Light:	nut bolt , bolts , nuts and bolts

A2 A4 Stainless Steel Hex Cap Screw Super half thread Long Hex Bolt

Product Description

Stainless steel,an iron based material with a minimum of 10.5% chromium. This material is known for its corrosion resistance and has vdiffer strengths depending on the amount of chromium and nickel alloy. The chromium forms a protective layer when exposed to oxygen, keeping the steel underneath from corroding. There are over 150 grades of this material with the 304 and 316 series being the most common.

Stainless Steel often refers to steel with resistance to air, water, acid, alkali salt or other medium corrosion. According to the different composition of the alloy, respectively, focusing on stainless steel and acid resistance. Some steel, although with a stainless steel, but not necessarily acid, acid-resistant steel is usually a stainless steel. For the production of fasteners are mainly austenitic stainless steel, in people's daily life, often referred to as stainless steel is also austenitic stainless steel. We use the stainless steel fasteners, raw materials are mainly used austenitic 302,304,316 and "low nickel" 201 and so on.

A hex cap screw is a threaded fastener with a hexagonal-shaped head. While the term hex head screw is generally used interchangeably with hex bolt, these two fasteners are actually very different. Hex screws are typically smaller than hex bolts, but this is not always the case. A hex cap screw can be significantly larger than a hex bolt depending on the applications, so it's important for users to learn the identifying features of each in order to choose the correct fastener for each job.

Specification

A2 A4 Stainless Steel Hex Cap Screw Super half thread Long Hex Bolt 0

Metric Hex Cap Screws
ANSI B18.2.3.1M, ISO 4014, DIN 931
D	DS		S		E		K		K1	C		DW
Nom. Screw	Body Dia.		Width Across		Width Across		Head		Wrench Height	Washer		Wash. Face Dia.
Dia. & Thread Pitch			Flats		Corners		Height			Face
			(Wrench Size)							Thickness
	Max	Min	Max	Min	Max	Min	Max	Min	Min	Max	Min	Min
M5x0.8	5	4.82	8	7.78	9.24	8.79	3.65	3.35	2.4	0.5	0.2	6.9
M6x1	6	5.82	10	9.78	11.55	11.05	4.15	3.85	2.8	0.5	0.2	8.9
M8x1.25	8	7.78	13	12.73	15.01	14.38	5.5	5.1	3.7	0.6	0.3	11.6
M10x1.5	10	9.78	*16/17	15.73	18.48	17.77	6.63	6.17	4.5	0.6	0.3	14.6
M12x1.75	12	11.73	*18/19	17.73	20.78	20.03	7.76	7.24	5.2	0.6	0.3	16.6
M14x2	14	13.73	*21/22	20.67	24.25	23.35	9.09	8.51	6.2	0.6	0.3	19.6
M16x2	16	15.73	24	23.67	27.71	26.75	10.32	9.68	7	0.8	0.4	22.5
M20x2.5	20	19.67	30	29.16	34.64	32.95	12.88	12.12	8.8	0.8	0.4	27.7
M24x3	24	23.67	36	35	41.57	39.55	15.44	14.56	10.5	0.8	0.4	33.2
M30x3.5	30	29.67	46	45	53.12	50.85	19.48	17.92	13.1	0.8	0.4	42.7
M36x4	36	35.61	55	53.8	63.51	60.79	23.38	21.62	15.8	0.8	0.4	51.1
M42x4.5	42	41.38	65	62.9	75.06	71.71	26.97	25.03	18.2	1	0.5	59.8
M48x5	48	47.38	75	72.6	86.6	82.76	31.07	28.93	21	1	0.5	69
M56x5.5	56	55.26	85	82.2	98.15	93.71	36.2	33.8	24.5	1	0.5	78.1
M64x6	64	63.26	95	91.8	109.7	104.65	41.32	38.68	28	1	0.5	87.2
M72x6	72	71.26	105	101.4	121.24	115.6	46.45	43.55	31.5	1.2	0.6	96.3
M80x6	80	79.26	115	111	132.72	126.54	51.58	48.42	35	1.2	0.6	105.4
M90x6	90	89.13	130	125.5	150.11	143.07	57.74	54.26	39.2	1.2	0.6	119.2
M100x6	100	99.13	145	140	167.43	159.6	63.9	60.1	43.4	1.2	0.6	133

Application

These screws are usually used in a variety of manufacturing and industrial applications. They are used to join wood, metal, and composite materials. Typically, hex screws are used in projects where precision is valued above strength and mechanical performance. With no nut required, they can be used in smaller areas where a hex bolt would not fit easily. Hex bolts are generally reserved for construction purposes, such as joining wood or metal beams.

Also they are used in these area: Environmental protection equipment, medical equipment, communications equipment, power facilities, electronic products, food machinery, petrochemicals, ship assembly, valve pipelines, curtain walls, open space occasions.

Advantages

If you are interested in our products ,we can provide :

1. Good service. Any existing small problem will be solved at the most prompt time;

2. Rich export experience;

3. Data sheet is available upon your request

4. Welcome to send enquiry, we will reply ASAP.

5. Prompt shipment with all documents

6. Custom packing, with photo before shipment

7. High quality and competitive price.

More pictures

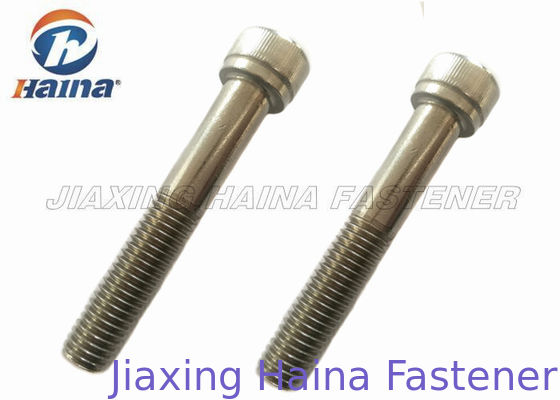

A2 A4 Stainless Steel Hex Cap Screw Super half thread Long Hex Bolt 1
