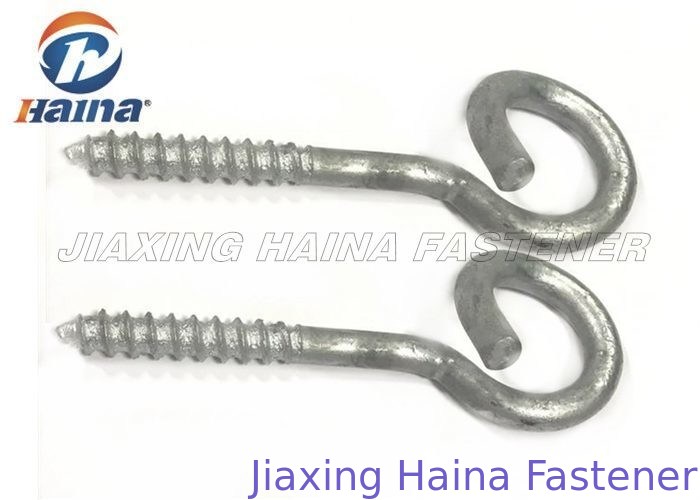

Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt

Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt

  • Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt
  • Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt
  • Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt
  • Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt
Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt
Product Details:
Place of Origin: China
Brand Name: HNF
Certification: ISO9001:2008
Model Number: 16MM 18MM 20MM
Payment & Shipping Terms:
Minimum Order Quantity: 500 kgs
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10-25 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Product: Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt Head Drive: Round Hook
Dia.: 16MM 18MM 20MM Surface: Zinc Plated Hot Dip Galvanized HDG
Specification: Gr 4.8 Hot Dip Galvanized HDG Pig Tail Eye Screw Hook Bolt Grade: Gr 2 Gr5 Gr4.8 Gr8.8
Color: Silver Other Name: Eye Hook Screw
Material: Carbon Steel Pitch System: Metric
Connection: Common Bolt
High Light:

threaded eye hook

,

eye hole screw

Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt


Description:



Screw eye, also called eye screw, is a wood screw with a head in the form of a loop.

PigTail Eye Screw ., are widely used in jewelry, hanging accessories, but also one of the common hardware accessories architectural decoration. An eye bolt is a bolt with a loop at one end. They are used to firmly attach a securing eye to a structure, so that ropes or cables may then be tied to it.

The material can be Stainless Steel, Brass,Carbon Steel,Aluminum and so on. The surface treatment can be zinc plated, plain and black, ect.

My company supply various kinds of eye screw, such asBest Eye Bolt Stainless Steel Bolt Eye Screw Hook Screw Eye, stainless steel DIN580 eye bolt, DIN580, DIN580 eye bolt, din444 eye bolt, which is made of different material, stainless steel eye screw,screw eye hook, carbon steel eye screw,screw eye hook, galvanized steel eye screw,screw eye hook,, zinc plated eye screw,screw eye hook,, and any other types eye bolt according to customers' request, and many types of bolts, screws, washers, etc.
If you are interested in our products, welcome to give us a call or send us an e-mail with your request for quote or stock checks.


Specification:


Name Gr 4.8 Hot Dip Galvanized HDG Pig Tail Eye Screw Hook Bolt Bigtail Eye Bolt
Place of Origin China, Hebei
Size M3-M6
Length non - standard as requirement & design
Standards GB, DIN, ISO, ANSI/ASTM
Material Carbon steel, stainless steeletc.
Surface Oassivation,Plain,hot galvanized, bule white, etc
Delivery 15-20days
Package 25KG/CTN,36CTNS/PLT, or according to customers' requirement
Payment T/T 30% per 70%balance before shipment or against the copy of BL.
Non-standards OEM is available.
Equipment

Forging Press,Punching Machine,Threading Machine,Lathe,Milling Machine,Stamping Machine



SIZE(inch) W.L.L.(lbs) THREAD LENGTH(inch) I.D.OF EYE(inch) N.W.(lbs/100pcs)
1/4x2 650 1 1/2 1/2 6
5/16X2-1/4 1200 1 1/2 31/50 18 3/4
3/8X2-1/2 1550 1 1/2 3/4 24 32/97
3/8X6 1550 2 1/2 3/4 43 3/4
1/2X6 2600 3 1 62 1/2
1/2X10 2600 3 1 88
5/8X4 5200 2 1 1/4 101 1/4
5/8X8 5200 3 1 1/4 131
5/8X12 5200 4 1 1/4 175
3/4X6 7200 3 1 1/2 180
3/4X10 7200 3 1 1/2 237 1/2
3/4X15 10600 5 1 1/2 300
7/8X8 10600 4 1 3/4 325
1X6 13300 3 2 425
1X12 13300 4 2 550
1-1/4X8 21000 4 2 1/2 750
1-1/4X20 21000 6 2 1/2 1150


Application:


Pig Tail Eye Screw Hook Bolt Bigtail Eye Bolt are widely used in jewelry, hanging accessories, but also one of the common hardware accessories architectural decoration.

Advantages:



1. Professional manufacturer for bolt, screw, nut, washer, threaded rod, anchor

2. Rich export experience.

3.Inspection on critical dimensions.

4. Small orders are acceptable,
5. Strong ability for R&D.

6..Non-standard/standard/OEM/ODM/Customized service are provided.





Gr 4.8 Hot Dip Galvanized Screw Eye Hooks / Metric Bigtail Eye Bolt 0
