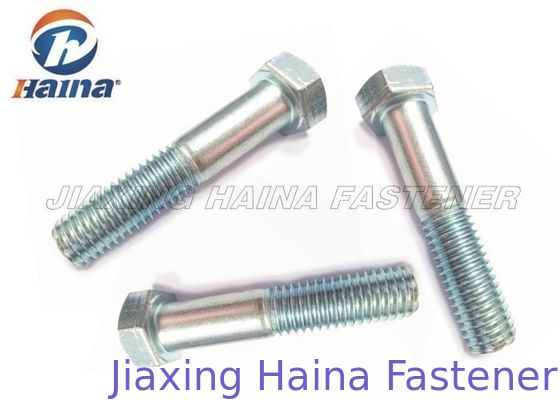

DIN Carbon Steel 4.8 8.8 10.9 Half Thread​ Hex Head Bolts

DIN Carbon Steel 4.8 8.8 10.9 Half Thread​ Hex Head Bolts

DIN Carbon Steel 4.8 8.8 10.9  Half Thread​ Hex Head Bolts
DIN Carbon Steel 4.8 8.8 10.9  Half Thread​ Hex Head Bolts
Product Details:
Place of Origin: CN
Brand Name: HNF
Certification: ISO9001:2008
Model Number: 1/4" 1/2" 1 1/2"
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Price: Negotiation
Packaging Details: Common export packing. Cartons+Pallets, or customized packing
Delivery Time: 10-25days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 500 ton per month
Contact Now
Detailed Product Description
Product: Hex Head Bolt Head Style: Hexagonal Head
Dia.: 1/4" 1/2" 1 1/2" Surface: Zinc Plated
Specification: ASME B18.2.1 DIN931 DIN933 Grade: GR4.8 Gr8.8 Gr10.9
Color: Blue White Name: Hex Head Bolt
Thread: Right Thread Pitch: Coarse Thread Fine Thread
High Light:



Hex Bolts


hex head bolts

Carbon Steel Socket Head Cap ASME Hand Thread​ Hex Head Bolt


A hex cap screw is a screw with a hex head, which is known to all as hex head bolt. It is designed to be driven by a hex wrench (spanner). An ASME B18.2.1 compliant cap screw has somewhat tighter tolerances than a hex bolt for the head height and the shank length. The nature of the tolerance difference allows an ASME B18.2.1 hex cap screw to always fit where a hex bolt is installed but a hex bolt could be slightly too large to be used where a hex cap screw is designed in.

Hexagonal bolt head and the screw fastener means consisting of bolts Material iron bolts and stainless steel bolts, hex head bolts namely (threaded portion) -C grade and hex head bolt (full thread) -C grade, also known as hex head bolt (crude) gross hex head bolts, black iron screws. The hex bolt has other name, such as hex head bolt, machine bolt, hex head cap screw, and so on.

The carbon steel hex bolt is in plain finish and an external hex drive, and meets ASME B18.2.1 specifications and standards. The zinc plated provides strength and has better corrosion resistance. This property is prominent, especially in marine and crule environments. The material may be slightly magnetic. The external hex drive has six flat sides that a wrench can grip to turn the screw from the side, enabling use when there is no space above the head for a driver.

Hex Head Cap screws and hex bolts and machine bolts are threaded fasteners. They are in thick hex-shaped heads. This kind of heads can be used with threaded nuts or in areas with limited clearance above the tapped (threaded) hole. Hex head Cap screws have slightly different dimensions than hex bolts and have a washer face underneath their hex head to act as a large bearing surface against the mating material. External hex drive tightens from the side with a wrench, enabling use when there is no space above for a driver.



Material Type

Carbon Steel Socket Head Cap ASME Hand Thread​ Hex Head Bolt

Dia 1/4 1/4
Length 2"
System of Measurement AISI Inch Metric Thread
Specification Met ANSI/ASME B18.2.1 DIN933 DIN931
Drive Stype External Hex
Exterior Finish Zinc Plated
Grade Gr4.8 Gr8.8 Gr10.9
Head Style Hexagonal Hex
Thread Style Right Hand


Testing Equipment Salt Spray Test, Durometer, and Coating Analyzer,Tensile Machine
Management System ISO9001
Certification SGS,Material Certication,PPAP,BV
Warranty Replacement at all our cost for rejected products
Sample Free
OEM Available



Hexagonal bolts connect two parts.
This connection type called bolt connection. As to unscrew the nuts from the bolts, so that the two parts can be separated, so bolting belongs detachable connection.

The hex head bolts are be used in connecting.




1. Many sizes and material hex bolts are in stock.
2. OEM workable

3. Great after sales service

4. Best quality

5. 24 hours on line

6. Mill Test Certificate MTC

7. Test report

8. Widely market
