Place of Origin: | China |
Brand Name: | HNF |
Certification: | ISO9001:2008 |
Model Number: | 5/8"-3 1/2" |
Minimum Order Quantity: | 500kgs |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case |
Delivery Time: | 15-25 days |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Supply Ability: | 500 tons per month |
Product: | B7 Stud Bolt Threaded Rod | Head Drive: | Round |
---|---|---|---|
Dia.: | 5/8"-3 1/2" | Surface: | PTFE Xylan Blue |
Specification: | ASTM A193 B7 B7M A320 L7 L7M | Grade: | B7 B7M L7 L7M |
Color: | Blue | Name: | Stud Bolt Stud Bar Threaded Bar |
Material: | 4140 | Pitch System: | Metric Picth |
Connection: | Common Bolt | HS Code: | 7318150000 |
Surface Coating: | Blue 1424 | Base Coating: | Zinc And Nickel |
High Light: | threaded bar,All Thread Rod,thread rod |

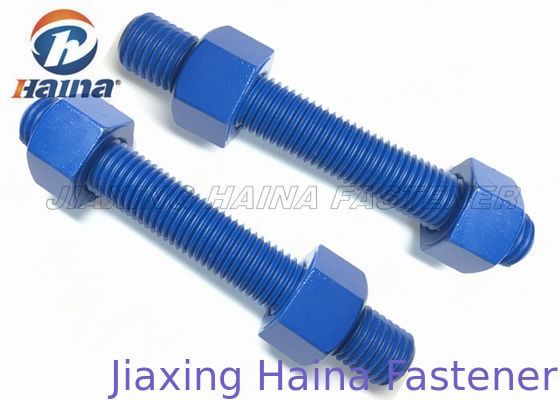

DIN976 carbon steel Stud Full cutting all Threaded Rod bolt and nut
1. Description:
Stud bolt, also known as the screw.
DuPont PTFE (PTFE) Trademark mainly used on the following products: PTFE, FEP, PFA, ETFE, AF, NXT, FFR.
PTFE: PTFE (polytetrafluoroethylene) nonstick coatings can be used continuously at 260 ℃, the highest temperature 290-300 ℃, low coefficient of friction, good abrasion resistance and excellent chemical stability.
FEP: FEP (fluorinated ethylene propylene copolymer) nonstick coatings melt flow during baking to form non-porous film with excellent chemical stability, excellent non-stick properties, the maximum temperature of 200 ℃.
PFA: PFA (perfluoroalkyl compounds) non-stick coatings and FEP melt flow during baking to form non-porous film. PFA has the advantage of higher continuous use temperature of 260 ℃, more just toughness, particularly suitable for use in chemical resistance and anti-sticking field of use under high temperature conditions. Han Ming and Qing era furniture components name. GB Base standard corresponding to DIN975. Due to different locations and names are different. Generally refers to the setting member is connected between the legs of the lower surface of the frame. There corset waist furniture in the following parts of the main coupling member. Located in other parts of the general renamed teeth. In addition, also used in the construction, most decoration.ASTM A193 B7 B7M A320 L7 L7M Stud Bolt threaded rod are commonly used in offshore flatform, oil and gas. With PTFE coating, it is in high anti-corrosion.
The specification for ASTM A193 covers alloy and stainless steel bolting for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, low temperature, or other special purpose applications. The ASTM A193 specification covers bars, bolts, screws, studs, stud bolts, and wire. The material may be further processed by centerless grinding or by cold drawing. Below are some of the ASTM A193 grades used commonly.
Common ASTM A193 specifications:
ASTM A193 B7 Alloy steel, AISI 4140 or 4142, quenched and tempered
ASTM A193 B6 Stainless steel, AISI 410, heat treated
ASTM A193 B8 Class 1 Stainless steel, AISI 304, carbide solution treated.
ASTM A193 B8M Class 1 Stainless steel, AISI 316, carbide solution treated.
ASTM A193 B8 Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened
2. Specification:
Name: (Maichuan) | DIN976 carbon steel Stud Full cutting all Threaded Rod bolt and nut |
Equal Standard | DIN975 |
Standard No | ASTM A193 ASTM A320 |
Thread Type | UNC, UNF, UNEF, M, BSW, BSF, TR, ACME, NPT TP |
Material | Alloy Steel(40Cr/35CrMo/4140) |
Dimension | Metric size from 6mm-100mm, Inch size from 1/8"-3-1/2". |
Surface treatment | PTFE, PTFE, Xylan Blue, treatment: Plain, black finished, Zinc plated (Galv), Hot DIP Galvanized, Nickel, phosphate black, DACRO coating, etc. |
Production Technique | Cold forging, Hot forming, Machining, Heat treatment, Staming, etc |
Grade | ASTM A193 B7 B7M A320 L7 L7M |
Tolerance | 6g |
3. Application:
Oil and Gas.
4. Advantages:
1, Not sticky: Almost all the material is not bonded with PTFE coating. Thin film also showed good adhesion properties.
2, Heat resistance: PTFE coating has excellent heat resistance and low temperature properties. Short period of time can be high temperature to 300 ℃, generally between 240 ℃ ~ 260 ℃ can be used continuously, with significant thermal stability, it can work without embrittlement in freezing temperatures, it does not melt at high temperatures.
3, Sliding: PTFE coating has a low coefficient of friction. Load sliding friction coefficient changes, but only in the values between 0.05-0.15.
4, anti-wet: PTFE coating surface water and oil production operations are not easy to dip solution, such as sticking a small amount of dirt, simply wipe clean. Downtime is short, save time and improve efficiency.
5, Wear resistance: under high load, with excellent wear resistance. In a certain load, wear-resistant and non-adherence with the dual advantages.
6, Corrosion resistance: PTFE is almost free from erosion of the drug, in addition to withstand molten alkali metal fluoride, a strong acid medium, and above all than 300 ℃ sodium hydroxide (including aqua regia), strong oxidizing agents, reducing agent and various organic solvents, can protect parts from being any kind of chemical corrosion.
