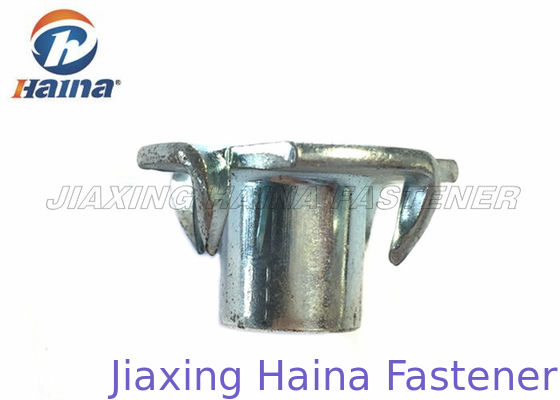

DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures

DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures
DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures

Large Image :  DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures

Product Details:

Place of Origin: Zhejiang, China( Mainland )
Brand Name: HNF
Certification: ISO9001:2008
Model Number: DIN 1624

Payment & Shipping Terms:

Minimum Order Quantity: 100000 pcs
Price: Negotiation
Packaging Details: Carton and Pallet or Customize Packing
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 600 ton per month
Detailed Product Description
Product Name: DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts For Furnitures Finish: Zinc Plated
Material: Carbon Steel Advantage: Good Corrosion Resistance
Grade: Gr.4.8 Thread: Coarse Thread
Thread Size: M10 Application: For Furniture
High Light:

Hex Coupling Nut

,

Zinc Plated Nuts

,

Claws Nuts

DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures



1. Product Description



The tee nuts also known as four claws nuts or furniture nuts, which is used for furniture connection. The tee nuts or 4 claws nuts are made in many ways. The tee nuts is commonly used in furniture industry and serve a very important application for connection. Also the beautiful apperance fit for the In high standard that can be made with a machine nut blank material, then tap, and then punch Four arrested; Less demanding can punch blanks, step back is also tapping. The step of producing: First, cold forging - tapping - flanging - Plating. Second, the punch (available punch stretch) - Tapping - Plating. The four agnails could insert to the wooden furniture and keep the body firmly fasten into the furniture parts, and the thread hole could offer a place for fastening.



2. Specification



Size Inner Dia. Height opposite side
M10 10mm 11mm 22.8mm



More details:



DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures 0



Thread Thread G±0.5/MM H±0.4/MM F±0.3/MM A±0.8/MM

T ±0.2/MM

M4 8-32 15 6 5.1 4.8 0.8
M4 8-32 15 8 5.1 6.2 0.8
M5 10-24 17 8 6.1 5.8 1.0
M5 10-24 15 11 6 6.5 1.0
M6 1/4-20 19 9 7.3 7 1.2
M6 1/4-20 19 12 7.4 7.2 1.2
M8 5/16-18 22 11 9.4 7.2 1.2
M8 5/16-18 22 11 9.7 8 1.5
M8 5/16-18 22 13 9.6 7.5 1.2
M8 5/16-18 22 14 9.4 7.7 1.2
M8 5/16-18 25 14 9.5 9 1.5
M8 5/16-18 22 17 9.3 8.5 1.2
M10 3/8 25 12 11.2 8.5 1.5
M10 3/8 25 13 11.2 9.0 1.5
M10 3/8 25 14 11.2 8.5 1.5
M10 3/8 25 16 11.2 8.7 1.5
M10 3/8 25 18 11.9 9.5 1.5
M12 1/2 28 17 13.9 11 2













































3. Application



The tee nuts is commonly used in furniture industry and serve a very important application for connection. General Fastening applications where need high strength and superior corrosion resistance. For the joining process required pressure is usually applied manually by the operator or by the machine. Square weld nut is designed for through-hole applications and are not self-positioning, so the need for additional installation or jigging dowel precise location.



4. Advantages



Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.



5. More pictures



DIN 1624 Tee Nuts Claws Nut Carbon Steel Zinc Plated Four Claws Nuts for Furnitures 1
