Place of Origin: | China |
Brand Name: | HNF |
Certification: | ISO9001:2008 |
Model Number: | M6-M30 |
Minimum Order Quantity: | 1000 kgs |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case |
Delivery Time: | 9-25 days |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Supply Ability: | 500 tons per month |
Product: | DIN444 Lifting Eye Bolt | Head Drive: | Round |
---|---|---|---|
Dia.: | M5-M39 | Surface: | Black |
Specification: | DIN444 | Grade: | Gr 4.8 |
Color: | Black | Other Name: | Eye Bolt |
Material: | Carbon Steel | Pitch System: | MM |
Connection: | Common Bolt | ||
High Light: | Industrial Fasteners,U Clip Fasteners |

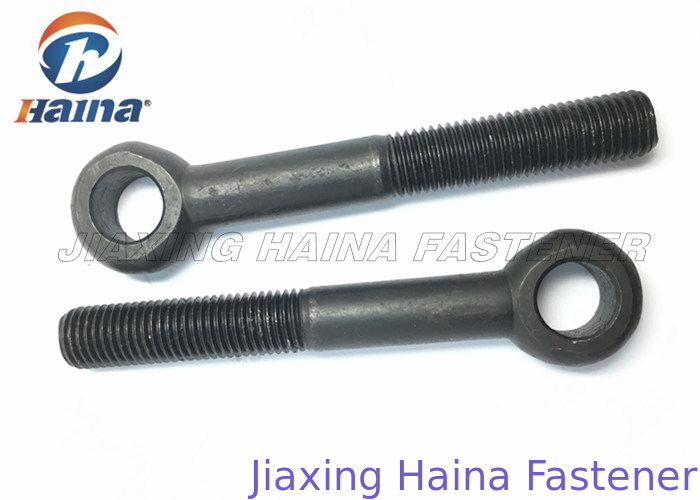

DIN444 M5-M39 Full Thread Black Surface Lifting Eye Bolt Custom Fasteners
Description:
Eye bolts, also known as the holes for the bolts, follow the GB / T798-88 standard; also known as fish eye bolt internationally, follow DIN444 standards. Refined holes for the bolts, spherical smooth, high precision thread, thread size is M6 to M64. Articulated bolt surface treatment: hot-dip galvanizing, diffusion coating, white coating, plating color, and other anti-corrosion measures, high strength bolts factory color is blue brunette cook, materials are: Q235,45 #, 40Cr, 35CrMoA, stainless steel 304 316 stainless steel and the like. Application Project: filter self, gas detection equipment, dust masks, raincoats mine, mine detonators, application details: eyelets are widely used: low pressure valves, pressure pipelines, fluid engineering, oil drilling equipment, oil field equipment, such as is often the valve industry, folding bicycle, baby carriage or tool used on occasion open connections, easy to use and articulated bolt, fast, and supporting the use of nut acts connections are tight, the scope of application wide very wide. For valve articulated bolt, sealing problems can not be ignored, because the valve run, drain, drops and other phenomena from here, the valve must be articulated bolt for quality assurance, in order to ensure the safety of use.
Load testing with screw rings by 2.5 times the working load are 20,000 times fatigue test at 1.5 times the working load. Screw rings to meet or exceed ASME B30.26 standards. Screw rings made of high alloy steel by reference to Germany RUD WBG type production, the products are exported to Europe and America, and by local-level G80 standard test. Better material than the existing domestic screw rings Rally higher offers tensile testing reports. Screw rings shall professionals operation, see the instructions for use and, when connected to the spreader should be kept with the spreader rings rotatable joints, professionals should conduct regular safety inspection. Maximum working load of up to 30T, and can be customized inch thread.
1.M8X1.25-6g, thread length: 12mm, pulling force: 0.4T, Weight: 0.27KG / piece
2.M10X1.25-6g, thread length: 19mm, pulling force: 0.5T, Weight: 0.27KG / piece
3.M12X1.75-6g, thread length: 19.1mm, pulling force: 1.05T, Weight: 1.2KG / piece
4.M14X2.0-6g, thread length: 31.8mm, pulling force: 1.15T, Weight: 1.2KG / piece
5.M16X2.0-6g, thread length: 31.8mm, pulling force: 1.9T, Weight: 1.2KG / only
6.M20X2.5-6g, thread length: 38.1mm, pulling force: 2.15T, Weight: 2.21KG / piece
7.M22X2.5-6g, thread length: 38.1mm, pulling force: 2.25T, Weight: 2.21KG / piece
8.M24X3.0-6g, thread length: 38.1mm, pulling force: 4.2T, Weight: 2.21KG / piece
9.M30X3.5-6g, thread length: 50mm, pulling force: 5T, Weight: 3.86KG / piece
Name: (Maichuan) |
Carbon Steel Gr 4.8 Gr 8.8 DIN444 M6-M30 Full Thread Black Lifting Eye Bolt Custom Fasteners |
Equal Standard |
DIN444 |
Standard No |
DIN444 |
Thread Type |
Standard Thread |
Material |
Alloy Steel(40Cr/35CrMo/4140) Carbon Steel |
Dimension |
Metric size from 6mm-100mm, Inch size from 1/4-5" |
Production Technique |
Cold forging, Hot forming, Machining, Heat treatment, Staming, etc |
Grade |
Gr4.8 Gr8.8 |
Tolerance |
6g |
Testing Equipment |
Caliper,Go&No-go gauge,Tensile test machine,Hardness tester,Salt spraying tester, H.D.G thickness tester, 3D detector,Projector,Magnetic flaw detecter |
Application:
Application Project: filter self, gas detection equipment, dust masks, raincoats mine, mine detonators, application details: eyelets are widely used: low pressure valves, pressure pipelines, fluid engineering, oil drilling equipment, oil field equipment, such as is often the valve industry, folding bicycle, baby carriage or tool used on occasion open connections, easy to use and articulated bolt, fast, and supporting the use of nut acts connections are tight, the scope of application wide very wide. For valve articulated bolt, sealing problems can not be ignored, because the valve run, drain, drops and other phenomena from here, the valve must be articulated bolt for quality assurance, in order to ensure the safety of using
Eye bolt are widely used in ports, power, steel, shipbuilding, petrochemical, mining, railways, construction, metallurgy, automobile manufacturing, plastics machinery, industrial control, highways, large transport, pipelines and auxiliary set, slope tunnels, wells control protection, salvage, ocean engineering, airport construction, bridges, aviation, aerospace, and other important venues and infrastructure construction industry, machinery and equipment.
Advantages:
1. Professional manufacturer for bolt, screw, nut, washer, threaded rod, anchor
2. Provide MTC.
3. 100% inspection on critical dimensions.
4. Domestic and Overseas markets.
5. Well equipped with complete facilities.
