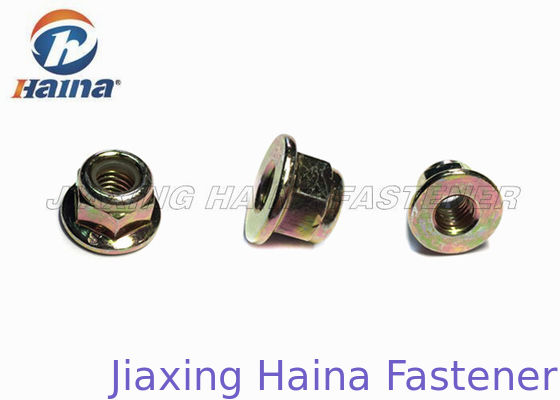

Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated

Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated

  • Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated
  • Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated
  • Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated
  • Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated
Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated
Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: HNF
Certification: ISO9001
Model Number: DIN
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: Negotiation
Packaging Details: Carton and Pallet or Customize Packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 600 ton per month
Contact Now
Detailed Product Description
Product Name: Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated Material: Carbon Steel
Advantage: Resists Loosening Under Vibrations Thread: Coarse Thread
Thread Size: M10 Fastener Thread Direction: Right Hand
Pitch: 1.5mm Grade: Gr.4.8
High Light:

Heavy Hex Nut

,

Carbon Steel Nuts

Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated





1.Product Description



A Nylon Insert Hex Flange nut is a kind of Nylon lock nut, which is known as a lock nut, locking nut, prevailing torque nut, stiff nut or elastic stop nut, is a nut that resists loosening under vibrations and torque. Elastic stop nuts and prevailing torque nuts are of the particular type where some portion of the nut deforms elastically to provide a locking action.The first type used fiber instead of nylon and was invented in 1931. Lock nuts, jam nuts, lock washes and thread-locking fluid are ways to prevent vibration from loosening a bolted joint. A hex flange nut with a nylon filled in it. When a screw or bolt reaches the position, the threads and nylon form a tight frictional fitness, preventing movement between the nut and bolt or screw when subjected to vibration. The nylon insert have various colors and is supplied with zinc plated finish. Nylon Insert Hex Flange Nuts can be recycling for more times than a reversible lock nut. Steel nylon insert stop nuts are less expensive than automation lock nuts. However, nylon will begin to damaged at temperatures from 150-350 degree centigrade. Thin Nylon Insert Lock Nuts provide applications where an insufficient number of projecting threads are present to use a standard nylon insert nut. Thin nylon insert nuts are intended for use in limited clearance applications and not for load bearing purposes. They allow for a rapid assembly process, thereby increasing process throughput and reducing assembly costs. Be used to construction, machinery construction and other branches. It can be used with bolts,screws and other fasteners without spring and lock washer. The flange povides a reduction of pressure on the surface and special notches give extra tighten torque. This kind of connection has a very high fastness.



2. Specification



Diameter Pitch Height opposite side Flange Dia. Flange Thickness
M10 1.5mm 15mm 16mm 22mm 4mm



More details:



Product Dimensions M10x1.5
Item Weight 26kg 1000 pieces
Surface Treatment Color Zinc Plated
Free Sample Available, shipping need to be charged only
Thread type Coarse Thread
Advantages

Corrosion Resistance,High Tensile, offer high holding power



3.Application



Nylon Insert Hex Flange Nuts can be recycling for more times than a reversible lock nut. Steel nylon insert stop nuts are less expensive than automation lock nuts.General Fastening applications where need high strength and superior corrosion resistance. For the joining process required pressure is usually applied manually by the operator or by the machine.



4.Advantages



When a screw or bolt reaches the position, the threads and nylon form a tight frictional fitness, preventing movement between the nut and bolt or screw when subjected to vibration. Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.



5.More pictures



Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated 0Nylon Insert Hex Flange Nut M10 Carbon Steel Color Zinc Plated 1
