Stainless Steel 304 316 316L M8 K - Lock Nuts With Free Spinning Washer

Product Details:

Place of Origin:	China
Brand Name:	HNF
Certification:	ISO9001
Model Number:	M8

Payment & Shipping Terms:

Minimum Order Quantity:	100000PCS
Price:	Negotiation
Packaging Details:	CARTONS +PALLETS
Delivery Time:	5-15 DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500TONS PER MONTH

Contact Now

Detailed Product Description

Item Name:	K - LOCK NUT	Diameter:	M8
Material:	Stainless Steel	Finish:	Plain
Package Quantity:	25KG	Pitch:	FINE
Sample:	Free	TYPE:	HEX
Standard:	DIN	Origin:	China
High Light:	Stainless Steel Nut , nuts and bolts , Lock Nuts

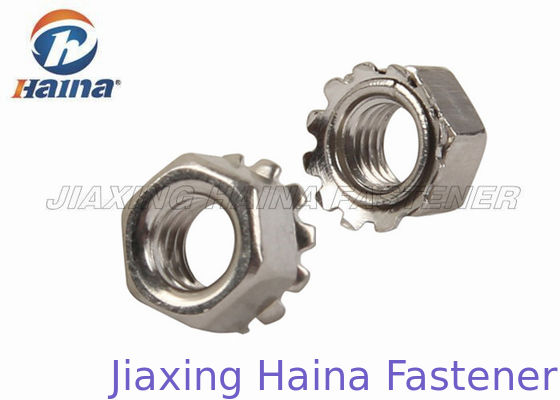

Stainless Steel 304 316 316L M8 K - Lock Nuts With Free Spinning Washer

1. Product Description

K-nut fastening hardware accessories nut one outer diameter hexagonal, and has six corners, while trimmed 65 manganese steel toothed spring washer, K-shaped side shape of the so called K-nut. K-nut include: M3, M4, M5, M6, M8, M10, M12 and imperial # 6, # 8, # 10,1 / 4,5 / 16,1 / 2 and so on, the products are suitable for machinery, furniture, appliances, electronics / computer, automobile, sports equipment and other industries metal fastening accessories.

2. Specification

Stainless Steel 304 316 316L M8 K - Lock Nuts With Free Spinning Washer 0

K-Lock Nut Size (mm)
Thread	Pitch	A.W	H.T	A.F
M2.5	0.45	φ 6.00-φ 6.3	2.5-2.7	4.5-5.0
M3	0.5	φ 7.00-φ 7.26	2.9-3.3	5.3-5.5
M4	0.7	φ 7.85-φ 8.15	3.8-4.2	8.0-8.2
M5	0.8	φ 9.05-φ 9.30	4.8-5.2	7.78-8.0
M6	1	φ 10.85-φ 11.15	5.8-6.2	9.78-10.0
M8	1/1.25	φ 14.70-φ15.00	7.5-7.9	14.6-14.8
#4	0.635	φ7.00-φ7.26	2.7-3.0	6.12-6.35
#6	0.793	φ8.60-φ8.80	3.3-3.75	8.7-8.9
#8	0.793	φ9.40-φ9.60	3.8-4.2	8.43-8.73
#10	1.058	φ10.00-φ10.30	3.85-4.25	10.4-10.6

Manufacture Process		Heading → washer → assembly → Threading → Secondary machine → heat treatment → plating → Anti-slipping → Baking → QA Package → Shipping
Package		1.Plastic Bags+Carton+ Pallet(Carton size: 20cm20cm15cm) .
		2.according to customers requirements.
		3.Suitable for sea shipping and air shipping.
Terms of payment		30% deposit to confirm the order, left payment balance before shipping
Quality Warranty		Before shipping,the QC will test, and we confirm our goods will satisfy yr request of 100%, and have 18 month warranty
After sales service		we will follow up goods for every customer
		and help solve problem after sales.

3. Application

Type K locknuts tighten this nut by elastic deformation of its body, so that the thread surface in close contact with tapping, an axial locking force. Its locking capability is excellent for harsh easy to loose, high torque, the working conditions of the occasion. Particularly suitable for locking the spindle bearings.

K-LOCK NUT is another type of lock nut. Its a hex nut pre-assembled with a free spinning external tooth lock washer. The teeth pattern of the washer bite into both the nut and the base material to prevent loosening caused by vibration. The locking action is achieved when the nut is tightened against a bearing surface as the teeth of the lock washer dig into it. Click here for dimensions of ANSI Standard Keps Nuts or Metric standard k-lock nut.

4. Advantages

As a family owned business, our goal has always been to provide customers with unmatched personalized service and support. Knowledge gained as both an applicator and a chemical manufacturer gives us extra insight and control over how to meet even the toughest requirements. Our processing divisions deal directly with regional customers and pride themselves on their quality and delivery.

As a fully integrated company, we do it all. We make the materials, build the application equipment and handle all aspects of operations from formulating custom chemical compositions and coating fasteners to providing advanced in-line inspection, packaging and delivery services. Find out how we can assist you on your next project.

5.More pictures

Stainless Steel 304 316 316L M8 K - Lock Nuts With Free Spinning Washer 1
