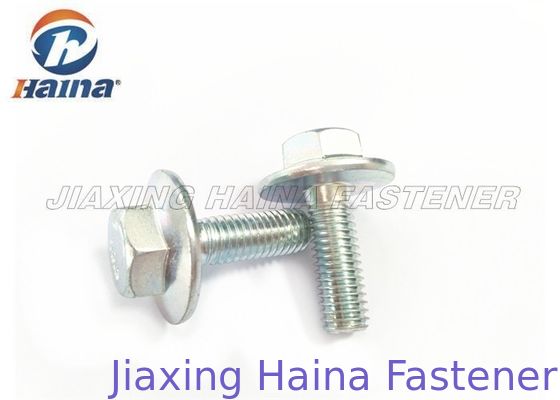

M8 X 25 Carbon Steel Hex Head Flange Bolt Customized Left Thread / Right Thread

Product Details:

Place of Origin:	China
Brand Name:	HNF
Certification:	ISO9001:2008
Model Number:	M8X25

Payment & Shipping Terms:

Minimum Order Quantity:	500 kgs
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	10-25 days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

Product:	Hex Flange Head Bolts	Head Drive:	Hex Flange Head
Dia.:	M6-M30	Surface:	Zinc Plated
Specification:	DIN6921	Grade:	Gr4.8 Gr8.8 Gr10.9
Color:	Blue White	Other Name:	Flange Bolt
Material:	Carbon Steel	Pitch System:	Metric Left Thread
Connection:	Common Bolt
High Light:	Galvanized Hex Bolts , Hex Flange Bolt

M8 X 25 Carbon Steel Hex Head Flange Bolt Customized Left Thread / Right Thread

Description:

Hexagon flange bolt and the flange (hex washer and hex fixed below one) and the screw (externally threaded cylinder) bolt integral two-part, need to cooperate with the nut, for tightening connecting the two through-hole parts.

There are two hex flange types: hexagonal head, there are two, one is the flat head, the other is concave.

The surface color categories: according to different needs, the surface coating of white, green, yellow color, and the other never rust dacromet.

Flange categories: Depending on the point of use flange bolts, disk size requirements are different, otherwise flat and toothed points, toothed anti-slip effect.

As the force of connecting, there are common and the other have articulation hole of the flange bolts articulation hole to hole size and fit that is used when lateral force.

In addition, to meet the needs of the lock after installation, the rod portion with a hole, the holes can not screw loose when subject to vibration.

Some flange bolts not threaded rod to be meticulous, called the shank flange bolt. This is conducive to the flange bolts by variable force coupling.

There are special high strength bolts on steel. The head will become bigger and more dimensions have changed.

Specification:

Name:	Carbon Steel Gr10.9 Customized Left Thread Righ Thread M8X25 DIN6921 Hex Flange Head Bolts
Standard	DIN6921
Grade	Bolt: Gr 4.6 4.8 5.6 5.8 8.8 10.9 12.9 14.9 (DIN) Bolt: Gr 2 Gr 5 Gr 8 (ASTM) Nut: Gr/8/ Gr 8 Gr10 Gr 12 (DIN) Nut: Gr 2 Gr 5 Gr 8 (ASTM)
Thread	UNC, UNF
Material	Carbon steel (#1035,#1045, 40Cr, 35CrMo, 42CrMo, B7, 20Mn2, M20) Stainless Steel (304 ,316, 316L)
Size	M2.5-M72( DIN) 3/16''-3'' (ASTM)
Finish	Plain, Zinc plated,
Production Technique	Cold forging, Hot forming, Machining, Heat treatment, Staming, etc

Available Standard	DIN6901 & 6921,DIN931, DIN933, DIN558, DIN960, DIN961, DIN558, ISO4014 and etc.
Specification	M8x25, standard & non-standard, spport customized as OEM or ODM.
Material	Carbon Steel, or Alloy Steel, Stainless steel or as appointed.
Grade	Grade 10.9
Finish	Blue/White Zinc Plated, or as appointed such as Black oxide, Nickel, Chrome etc.
Packing	Plastic bag & Double wall carton pack
Application	Motorcycle / Buliding / Mechanical Machine / Automobile /Home Decorating etc..
Production capability	About 200 tons/month
MOQ	1000pcs, we can disucss for first order.
Remarks	Samples are free.

Application:

Hex flange bolt are widely used in ports, power, steel, shipbuilding, petrochemical, mining, railways, construction, metallurgy, automobile manufacturing, plastics machinery, industrial control, highways, large transport, pipelines and auxiliary set, slope tunnels, wells control protection, salvage, ocean engineering, airport construction, bridges, aviation, aerospace, and other important venues and infrastructure construction industry, machinery and equipment.

Advantages:

1. Main product: bolt, screw, nut, washer, threaded rod, anchor

2. Free samples

3. Inspection on critical dimensions.

4. Global market

5. Good service

6. High quality

7. Competitive price

8. According to drawing or samples.
