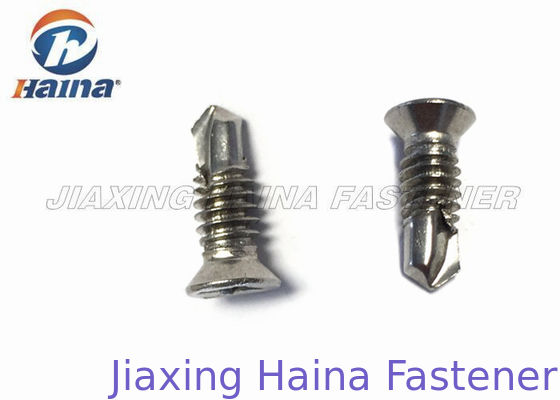

Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel

Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel

  • Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel
  • Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel
  • Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel
  • Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel
Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel
Product Details:
Place of Origin: China
Brand Name: HNF
Certification: ISO 9001
Model Number: M2
Payment & Shipping Terms:
Minimum Order Quantity: 100000pcs
Price: Negotiation
Packaging Details: CARTON +PALLET
Delivery Time: 5-18 WAOR DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 TONS PER MONTH
Contact Now
Detailed Product Description
Materials: Stainless Steel 304 316 Head Types: FLAT HEAD
Surface Treatment: PLAIN Sample: Free
Recess: Phillips Drive, Square Drive, Pozi Drive, Slot Drive, 6 Lobe Or According To The Customer's Demand. Specification: SGS; ROHS
Customized: Customized Used: Building
Thread Type: Type BSD, Type ASD, Type CSD, Delivery Time: 10-45days
High Light:

Screws

,

self drilling screws for thick steel

,

self drilling screws

Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel



1. Product Description



Self-drilling screws, also CALLED TEK screws, do not require a hole to be drilled prior to use which cuts down on time needed to drill and fasten materials by combining them. These have the same heads as traditional bolts and screws, but the fastener is designed with a drill flute on the tip to drill/fasten at the same time. Useful for quick sheet metal fastening and other applications like metal to metal or wood to metal.
Self drilling screws have a drill bit point. Pan heads are slightly rounded with short vertical sides. Phillips drives are + shaped for a phillips screw driver.

Flat heads are countersunk (cone shaped under the head) with a flat top. Phillips drive is x-shaped for installation with a phillips screw driver.

he generic name for these screws are Self Drilling,he length of the drill point determines the material thickness which the screw can reliably penetrate.When selecting a self-drilling screw design, it is important to consider the material thickness and type of materials to be joined.

The properties of drilling screw : 1) Exact forging standard of knife edge and high hardness of surface make it easy to drill. 2). The Special technology treatment of the surface makes the product anti-corrosion , antirust and durable. 3) Using the advanced technology to control the core hardness, avoiding rupture effectivity,





2.Specification





Our Processing CNC machining,  drilling, grinding, bending, stamping, tapping
Surface finish ,Zinc-plated, nickel-plated, chrome-plated, silver-plated, gold-plated
Tolerance 0.005mm~0.1mm
QC System 100% inspection before shipment
Drawing format CAD / PDF/ DWG/ IGS/ STEP
Packaging Standard package / Carton or Pallet / As per customized specifications
Payment Terms 30% T/T in advance,70%balance before delivery; Pay Pal or Western Union is acceptable.
Trade terms EXW, FOB, CIF
Shipment Terms 1) 0-100kg: express & air freight priority
2) >100kg: sea freight priority
3) As per customized specifications
head type Material Standard
Phillips pan head self drilling screw C1022A,SUS304,SUS316,SUS410 DIN7504N,ISO15481
Phillips flat head self drilling screw C1022A,SUS304,SUS316,SUS410 DIN7504P,ISO15482
Phillips oval head self drilling screw C1022A,SUS304,SUS316,SUS410 ISO15438
Hex head with washer self drilling screw C1022A,SUS304,SUS316,SUS410 DIN7504K,ISO15480
Hex head with flange self drilling screw C1022A,SUS304,SUS316,SUS410 GB/T1586.4



3. Application



Self-drilling screws have hardened drill points that will drill and thread in structural steel, mild steel, aluminum and wood. These drill points are manufactured in the same method as the high speed drill bits. Self-drilling screws are available in a variety of finishes with unique product features to suit a wide range of environmental conditions.

  • For the fastening process in steel, they are used on steel frame construction or fastening other materials on steel.
  • For the fastening process in wood, they are used for applications in wood structures or industrial lightweight constructions, such as roof deck, flooring.
  • For the fastening process in aluminum, they are used for special industrial applications, construction and manufacturing of windows.

4. Advantages



1.The Special technology treatment of the surface makes the product anti-corrosion , antirust and durable.

2.Exact forging standard of knife edge and high hardness of surface make it easy to drill.

3.Using the advanced technology to control the core hardness, avoiding rupture effectivity,

4. Quick self drilling , drilling , tapping, locking the oncce, and combining with the strength.

5. Save  contruction time, improve working efficency.

6. Technology, professional manufacturing , quality assurance.



5. More pictures



Stainless Steel 316 304 M2 - M10 self drilling screws for thick steel 0
