|Place of Origin:||Zhejiang, China (Mainland)|
|Minimum Order Quantity:||10000 pcs|
|Packaging Details:||2000pcs per Carton, Carton and Pallet or Customize Packing|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||350 ton per month|
|Product Name:||Blue / White Zinc Plated Drop In Expansion M10 Internal Forced Anchor Bolt||Finish:||Blue White Zinc Plated|
|Advantage:||Corrosion Resistance, Easy To Install||Anchor Dia.:||12mm|
|Thread:||Internal Thread||Application:||Anchoring Concrete|
Cement Anchor Bolts,
Concrete Fixing Bolts

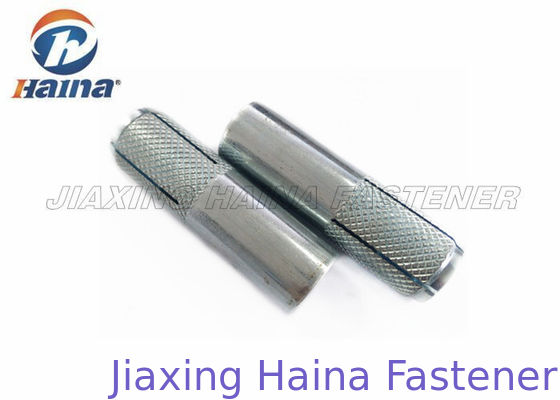

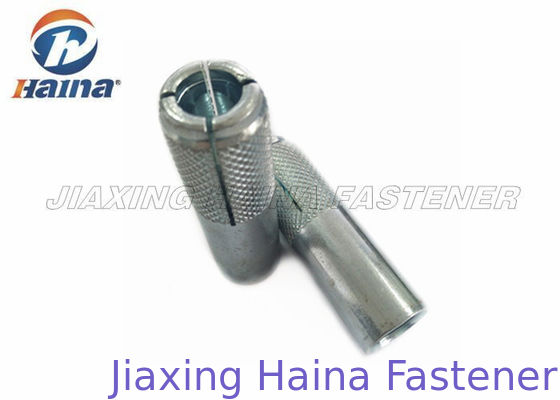

Blue / White Zinc Plated Drop in Expansion M10 Internal Forced Anchor Bolt
Drop in expansion anchor bolts is also known as implosion, which a small steel columns inside it, female cap thread in the end, screwed into the drilled hole in the wall, the small steel columns are constantly squeezed, the head burst open to generated frictional force with wall, fix into the wall solidly. The materials are stainless steel, carbon steel and other metal materials. Application for fixing concrete, natural solid stones. Drop in expansion anchor bolts are suitable for heavy-duty range depand on the screw and the inner teeth fixed, fire equipment, air conditioning and hot water pipe exhaust pipe installation, walls, hung upside piping duct ceiling etc.
Drop in expansion anchor bolts are internally threaded drop-in expansion anchors bolts for use in flush-mount applications in solid base materials. Perfect expansion and specially designed built in plug ensures full expansion of anchor.
To install the drop in expansion anchor bolts, can be divided in five steps. Drill a hole, use setting tool and hammer to drive plugin. Anchor ia set with bolt. These anchors can be used when working with hangers, handrail, machinery, shelving and light fixtures. They are best suited for light to heavy duty fastening purposes. Drop in expansion anchor bolts are available in M6-M20 and are available in steel zinc plated, stainless steel 304 and stainless steel 316 to meet different construction requirements.
|Item Weight||25kg 1000 pieces|
|Standard||GB /T 22795-2008|
|Free Sample||Available, shipping is on customers' charge|
|Thread type||Internal Thread|
Corrosion Resistance,High Tensile, offer high holding power
General Fastening applications where need high strength and superior corrosion resistance. Application for fixing concrete, natural solid stones. Drop in expansion anchor bolts are suitable for heavy-duty range depand on the screw and the inner teeth fixed, fire equipment, air conditioning and hot water pipe exhaust pipe installation, walls, hung upside piping duct ceiling etc. Drop in anchors used in pipe hanging, overhead anchoring, hanging strut, sprinkler systems, removable anchoring points mounting valve and pipe, mounting machinery, anchoring shelf and insulation applications in concrete materials or solid concrete base materials.
Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.
