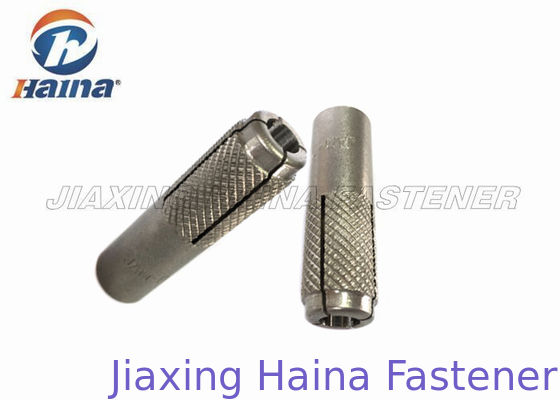

Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors

Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors

  • Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors
  • Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors
  • Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors
  • Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors
Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors
Product Details:
Place of Origin: China(mainland)
Brand Name: HNF
Certification: ISO9001
Model Number: M16
Payment & Shipping Terms:
Minimum Order Quantity: 5000 pcs
Price: Negotiation
Packaging Details: 250pcs per Carton, Carton and Pallet or Customize Packing
Delivery Time: 15-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 ton per month
Contact Now
Detailed Product Description
Product Name: Diameter Expansion Anchor Bolt M16 Coil Threaded Drop In Concrete Anchors Finish: Plain
Material: 18-8 Size: M16
Advantage: Good Corrosion Resistance, Easy To Install Diameter: 20mm
Thread Type: UNC/ Coil-thread
High Light:

Foundation Anchor Bolts

,

Concrete Fixing Bolts

Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors





1.Product Description



Drop in expansion anchor bolts is also known as implosion, which a small steel columns inside it, female cap thread in the end, screwed into the drilled hole in the wall, the small steel columns are constantly squeezed, the head burst open to generated frictional force with wall, fix into the wall solidly. The materials are stainless steel, carbon steel and other metal materials. Application for fixing concrete, natural solid stones. Drop in expansion anchor bolts are suitable for heavy-duty range depand on the screw and the inner teeth fixed, fire equipment, air conditioning and hot water pipe exhaust pipe installation, walls, hung upside piping duct ceiling etc. Drop in expansion anchor bolts are internally threaded drop-in expansion anchors bolts for use in flush-mount applications in solid base materials. Rally calibration values are resulting in strong cement testing conditions 260 ~ 300kgs / cm2, safe maximum load shall not exceed 25% of the nominal values.Drop-In anchors are female concrete anchors used for anchoring into concrete. Insert the anchor into the drilled hole in the concrete or the wall. Using a setting tool expands the anchor within the hole in the concrete.

To install the drop in expansion anchor bolts, can be divided in five steps. These anchors can be used when working with hangers, handrail, machinery, shelving and light fixtures. They are best suited for light to heavy duty fastening purposes. Drop in expansion anchor bolts are available in M6-M20 and are available in steel zinc plated, 18-8, stainless steel 304 and stainless steel 316 to meet different construction requirements.



2. Specification



Product Dimensions M16
Item Weight 93kg 1000 pieces
Standard GB /T 22795-2008
Free Sample Available, and shipping is on customers' charge
Thread type Internal Thread
Advantages

Corrosion Resistance,High Tensile, offer high holding power



3.Application



General Fastening applications where need high strength and superior corrosion resistance.  Application for fixing concrete, natural solid stones. Drop in expansion anchor bolts are suitable for heavy-duty range depand on the screw and the inner teeth fixed, fire equipment, air conditioning and hot water pipe exhaust pipe installation, walls, hung upside piping duct ceiling etc. Drop in anchors used in pipe hanging, overhead anchoring, hanging strut, sprinkler systems, removable anchoring points mounting valve and pipe, mounting machinery, anchoring shelf and insulation applications in concrete materials or solid concrete base materials.



4.Advantages



Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.



5.More pictures



Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors 0

Diameter Expansion Anchor Bolt M16 Coil Threaded drop in concrete anchors 1
