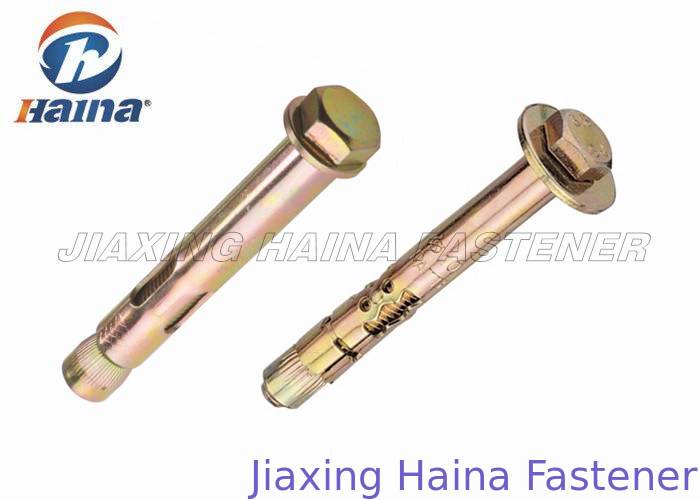

Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction

Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction

  • Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction
  • Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction
  • Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction
  • Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction
Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction
Product Details:
Place of Origin: China Made
Brand Name: HNF
Certification: ISO9001
Model Number: M8
Payment & Shipping Terms:
Minimum Order Quantity: 1000 KGS
Price: Negotiation
Packaging Details: carton + pallet or small box
Delivery Time: 20--25 days
Payment Terms: Western Union, L/C,T/T,
Supply Ability: 150 ton / per month
Contact Now
Detailed Product Description
Material: Carbon Steel Class: Grade 4.8
Available Material: Color Plated Carbon Steel , Stainless Steel Connection: Hex Bolt
The Alias: Sleeve Anchor Bolts Application: Machinery,Chemical Industry, Environmental,Building
Surface: Plain,passivation,polishing Port: Shanghai , Ningbo
Sample: Available Product: Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction
Size: M6-M24
High Light:

Foundation Anchor Bolts

,

Cement Anchor Bolts

Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction



Description:



Anchor bolts are cylindrical fasteners that are used to connect objects and structural elements to concrete.

The classic version is a cast in place anchor bolt. These bolts are inserted into concrete while it is still wet, with the threaded part sticking up. When the concrete hardens, the bolt is set in place, and objects can be bolted down with the use of a nut that connects to the threaded section. These bolts are often used in new construction projects, where the location of walls and other elements that need to be connected to the foundation is well known.

Available material in stainless steel , carbon steel, short or coil-thread versions. Nominal diameter of the threaded insert is equal to the minimum thread engagement.

Sleeve anchors work by inserting them into a hole drilled into concrete. Turning the nut pulls the working end of the sleeve anchor up through thesleeve, expanding and anchoring itself securely in the concrete, brick or block.

There are many types of anchors , like sleeve anchor, drop in anchor , expansion anchor, cut anchor , wedge anchor , J type anchor.



Specification:



Products name Expansion bolt , Concrete Anchor Bolts , Sleeve anchor bolt
Related Products Wedge anchor,cut anchor, expension bolt,Chemilcal anchor,Hollow wall anchor,Sleeve anchor,Concrete anchor bolt,window anchor
Standard: DIN,GB
Material Stainless Steel: SS201, SS304, SS316
Carton Steel: grade 4.8 color plated
Finishing Yellow,color plated
Production
Process
Cold forging,Stamping and assembled
Customized Products
Lead time
Busy season:25-35days,Slack seaon:15-20days
Stock Products Carbon steel:Drop in anchor.wedge anchor,sleeve anchor
Stainless steel: Standard stainless steel anchor
Free Samples for standard fastener



Application:



USED FOR : Steel construction , Railling , Cable line , Pipe Line , Elevator , Machine , Bracket , Stairs , Decoration on outside wall



Installation:



1.Using a diameter which equals the anchor diameter,drill hole to min.embedment.
2.Drill hole with proper size drill thought object to be fastened.
3.Insert anchor and expand by tightening nut.



Related Products:



Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction 0



Galvanized Anchor Bolts Concrete Sleeve Anchor For Steel Construction 1



Advantages:



1. Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers’ specification and performance.

2. Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.

3. Cost effective: Competitive prices with professional factory supply Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection.

4. Customized Ideal Fasteners: customized services according to the samples and drawings offered.
