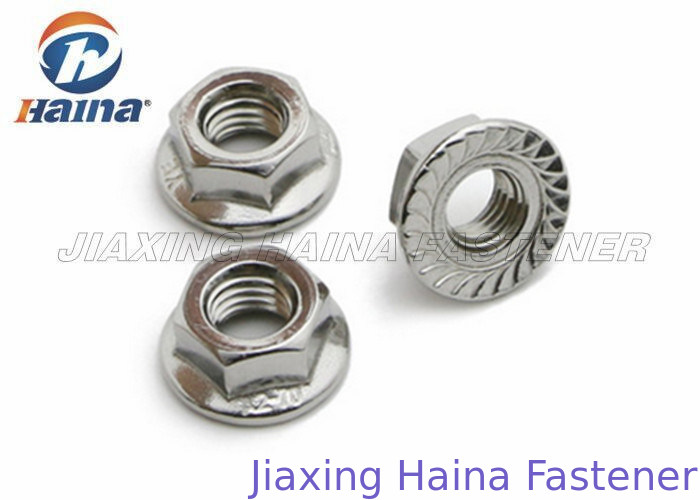

Plain Color Stainless Steel 316 304 M10 flange nut For Constructing

Plain Color Stainless Steel 316 304 M10 flange nut For Constructing

  • Plain Color Stainless Steel 316 304 M10 flange nut For Constructing
  • Plain Color Stainless Steel 316 304 M10 flange nut For Constructing
  • Plain Color Stainless Steel 316 304 M10 flange nut For Constructing
  • Plain Color Stainless Steel 316 304 M10 flange nut For Constructing
Plain Color Stainless Steel 316 304 M10 flange nut For Constructing
Product Details:
Place of Origin: China
Brand Name: HNF
Certification: ISO9001
Model Number: M10
Payment & Shipping Terms:
Minimum Order Quantity: 100000PCS
Price: Negotiation
Packaging Details: CARTONS +PALLETS
Delivery Time: 5-15 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500TONS PER MONTH
Contact Now
Detailed Product Description
Item Name: Flange Nut Diameter: M10
Material: Stainless Steel A4-70 Finish: Plain
Package Quantity: 100 Usage: Constructing,building,industry
Sample: Free Grade: A2,A4
Standard: DIN Origin: China
High Light:

flange nut

,

Metric Hex Nuts

,

hex flange nut

Plain Color Stainless Steel 316 304 M10 flange nut For Constructing



1. Product Description



A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer.This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface. These nuts are mostly hexagonal in shape and are made up of hardened steel and often coated with zinc.
The flange may be serrated to provide a locking action. The serrations are angled such that they keep the nut from rotating in the direction that would loosen the nut. Because of the serrations they cannot be used with a washer or on surfaces that must not be scratched. The serrations help in preventing the vibration of the nut from moving the fastener, thus maintaining the holding power of nut.
The flange nuts are sometimes provided with a swivel flange which helps in creating a more stable structure without affecting finished product like a serrated flange nut. Swivel flange nuts are mostly used in joining wood and plastic. Sometimes both faces of the nut are serrated, permitting either side to lock.





2. Specification



Plain Color Stainless Steel 316 304 M10 flange nut For Constructing 0



Nominal Nut Size EDP #   A
Flange Dia.
B
Across Flats
C
Across Corners
D
Nut Thickness
E
Minimum Flange Edge Thickness
M5 x 0.8 M05080M Max. Min. 11.81 7.77
8.00
8.79
9.25
4.70
5.00
0.99

M6 x 1.0 M06100M Max. Min. 14.20 10.00 9.78 11.55
11.05
6.00
5.70
1.10

M8 x 1.00 M08100M Max. Min. 17.90 13.00 12.73 15.01
14.38
8.00
7.60
1.20
M8 x 1.25 M08125M
M10 x 1.25 M10125M Max. Min. 21.80 15.00 14.73 17.32
16.64
10.00
9.60
1.50
M10 x 1.50 M10150M
M12 x 1.25 M12125M Max. Min. 26.00 18.00 17.73 20.78
20.03
12.00
11.60
1.80
M12 x 1.75 M12175M
M14 x 1.25 M14125M Max. Min. 29.90 21.00 20.67 24.25
23.35
14.00
13.30
2.10
M14 x 1.50 M14150M
M14 x 2.00 M14200M
M16 x 1.50 M16150M Max. Min. 34.50 24.00 23.67 27.71
26.75
16.00
15.30
2.40
M16 x 2.00 M16200M
M20 x 1.50 M20150M Max. Min. 42.80 30.00 29.16 34.64
32.95
20.00
18.90
3.00
M20 x 2.50 M20250M
M24 x 2.00 M24200M Max. Min. 51.73 36.00 34.80 41.57
39.67
24.00
22.86

3.60





3. Application



The flange nuts are available in most common metal types including brass, stainless steel and titanium. Course and fine thread nuts are also available in the flanged design, making the fastener a viable option for most fastening requirements. The serrated bottom of the locking flange nut design is a popular choice with electronics fasteners. The serrated flange bites and holds electrical fasteners in place. When used on a fragile surface, such as aluminum, the flanged nut is much less prone to damaging the soft metal surface than a traditional nut.

Another popular reason for using a hex flange nut is the ability to place the nut into a socket wrench and then reach into hard-to-access areas without dropping the nut. The flange sits tightly against the edge of the socket wrench and prohibits the nut from sinking deeply into the socket. The socket can be used as an extension of the user's arm in order to start the nut onto the bolt. Combined with a magnetic socket wrench, a hex flange nut is nearly impossible to drop out of a socket wrench.



4. Advantages



As a family owned business, our goal has always been to provide customers with unmatched personalized service and support. Knowledge gained as both an applicator and a chemical manufacturer gives us extra insight and control over how to meet even the toughest requirements. Our processing divisions deal directly with regional customers and pride themselves on their quality and delivery.

As a fully integrated company, we do it all. We make the materials, build the application equipment and handle all aspects of operations from formulating custom chemical compositions and coating fasteners to providing advanced in-line inspection, packaging and delivery services. Find out how we can assist you on your next project.



5.More pictures



Plain Color Stainless Steel 316 304 M10 flange nut For Constructing 1
