DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process

China DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process supplier
DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process supplier DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process supplier DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process supplier DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process supplier DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process supplier

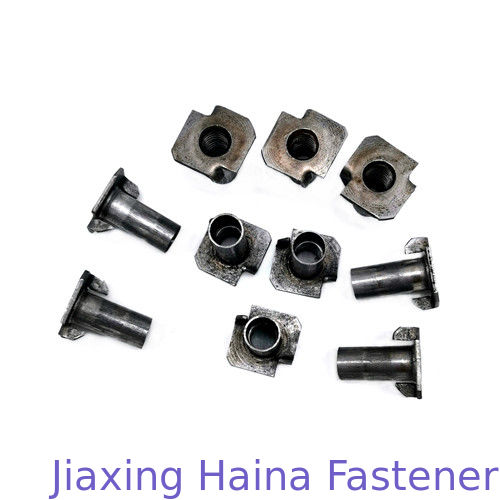

Large Image :  DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process

Product Details:

Place of Origin: CHINA
Brand Name: HNF
Certification: ISO9001
Model Number: M5-M64

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Common export packing. Cartons+Pallets, or customized packing. Bag Packing
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Product: Two Claw Nut Head Drive: T
Standard: DIN, ANSI Surface: Plain Finish
Material: Stainless Steel Head: Hex Head
HS Code: 731816 Inspection: 100%QC Steps Inspect Before Shipment
Packing: Carton Box And Kraft Box Process: Cold Forging
Application: Machinery, Chemical Industry, Environmental





DIN 1624 stainless Steel ss304 / 316 Customized T Nut Two Claw Nut

Description:



The four-jaw nut is the part that tightly connects the mechanical equipment. The nuts and bolts of the same size can only be connected together through the internal thread. For example, the nut of m4-p0.7 can only be connected with the bolts of m4-p0.7 series (in the nut, the inner diameter of the M4 finger nut is about 4mm, and the distance between the two thread teeth of 0.7 finger is 0.7mm).The same is true of American products.The four-jaw nut can be installed by manual and electric methods respectively. Some people will choose manual method to install it by borrowing relevant tools.



Specification:



Item DIN 1624 stainless Steel ss304 / 316 Customized T Nut Two Claw Nut
size M3, M4, M5, M6, M8, M10, M12, # 6, # 8, # 10,1 / 4,5 / 16,1 / 2
Material Available Stainless Steel A2-70 A4-80 Carbon Steel
Surface treatment Passivate, Plain, zinc plated
Heat treatment Tempering, Hardening, Spheroidizing
Tolerance 6g
Packing carton box + pallet
Lead time About 10-25 days. Reality time is according to customer's requirement
Place of Origin China
Non-standards OEM is available, according to drawing or samples
Samples Free
Material SS304, SS316, Gr4.8 Gr8.8
Features Good anti-corrosion ability
Certification ISO9001:2008, SGS
OEM service is also available



Material:



Material C Si Mn P S Ni Cr Mo Other
201 0.15 1 5.5-7.5 0.06 0.03 3.5-5.5 16-18   N≤0.25
304 0.08 1 2 0.045 0.03 8.0-10.0 18-20
304L 0.03 1 2 0.045 0.03 8.0-12.0 18-20
321 0.08 1 2 0.045 0.03 8.0-13.0 17-19   Ti≤5*C%
316 0.08 1 2 0.045 0.03 10.0-14.0 16-18 2-3
316L 0.03 1 2 0.045 0.03 10.0-15.0 16-18 2-3
309S 0.08 1 2 0.045 0.03 12.0-15.0 22-24
410 0.15   1   0.03 - 11.5-13.5
420 0.26-0.4   1   0.03 - 12-14
430 0.12 0.75 1 0.04 0.03 - 16-18



Application:


The kep nuts are mainly used in machinery, furniture, appliances, electronics / computer, automobile, sports equipment and other industries metal fastening accessories.



Advantages:


1. Over 6 years of manufactiring experience
2. Many kinds of stock
3. Competitive price

4. Quality control system

5. Durability testing and critical technical design

6. Customized services



DIN 1624 Customized T Nut Two Claw Hex Head Bolt Cold Forging Process
