Place of Origin: | China(Mainland) |
Brand Name: | HNF |
Certification: | ISO9001 |
Model Number: | ASME/ANSI |
Minimum Order Quantity: | 8000pcs |
---|---|
Price: | Negotiation |
Packaging Details: | customize packing |
Delivery Time: | 12-20 days |
Payment Terms: | L/C, T/T, Western Union,paypal |
Supply Ability: | 500 tons per month |
Item: | SS316 / SS304 ASME / ANSI Plain Hex Flange Nuts With Serrated | Row Material: | SS304/SS316 |
---|---|---|---|
Fnishing: | Plain | Size: | 1/4-3/4 |
Export Market: | Globle | ||
High Light: | nuts and bolts,Flange Nuts,Hex Nuts |
SS316 / SS304 ASME / ANSI Plain Hex Flange Nuts With Serrated
Introduction:
Flange nut and general hex nut size and thread size is basically the same, but compared with the hex nut, it is a washer and nut is one, and there are non-slip tooth pattern below, thus increasing the nut and the workpiece Of the surface area of contact, compared with ordinary nut plus washer combination, more solid and pull more.
General common flange nut specifications are generally below M20, because most of the flange nuts are used in the pipe and flange, so by the workpiece constraints, flange nut specifications compared with the nut less. Some flange nuts M20 above are mostly flat flange, there is no tooth pattern on the flange
surface
Specification:
Product name | SS316 / SS304 ASME / ANSI Plain Hex Flange Nuts With Serrated |
Export market | Globle |
Size | 1/4-3/4 |
Standard packaging | customize packing |
Application | Mostly used in pipe connections |
More info | Please visit our website or send us email for further cooperation |
tensile strength | hardness | Melting point(℃) | Elongation | Resistivity(20℃10-6Ω·m) |
σb (MPa)≥515-1035 | ≤201HBW;≤92HRB;≤210HV | 1398~1454 | δ5 (%)≥40 | 0.73 |
HBS | HRB | HV | Elongationδ5/% | tensile strengthσb/Mpa | Yield Strengthσ0.2/Mpa |
≤187 | ≤90 | ≤200 | ≥40 | ≥520 | ≥205 |
Application:
Flange nut, also known as padded nut, flower tooth nut, hexagonal flange nut, flange nut and so on. Mostly used in pipe connections or need to increase the nut contact surface of the workpiec

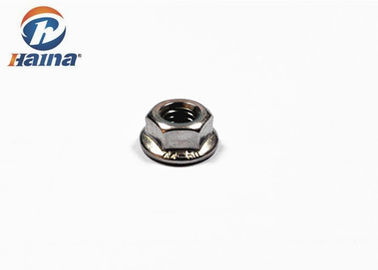

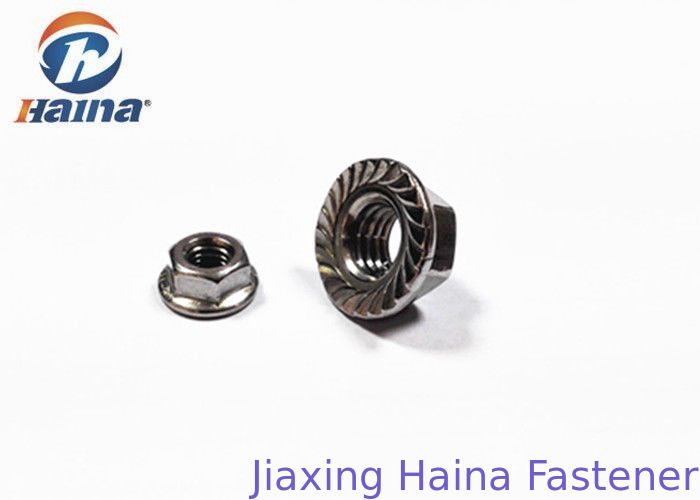

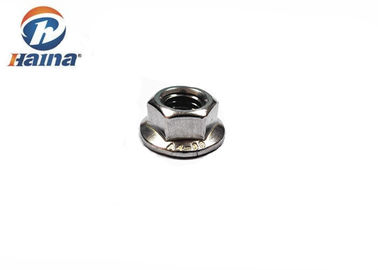

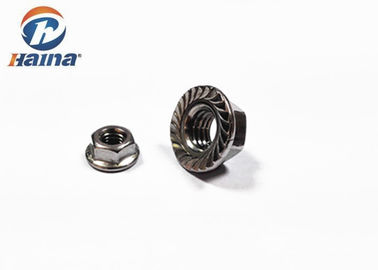

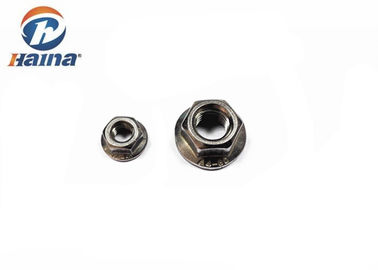

More pictures:
Advantages:
1. Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers’ specification and performance.
2. Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
3. Cost effective: Competitive prices with professional factory supply Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection.
4. Customized Ideal Fasteners: customized services according to the samples and drawings offered.
Question & Answer:
Question 1: What's the payment terms?
L/C, , T/T, Western Union,Paypal
Question 2: How about the price?
Best price based on the quality. Please send us your inquiry, we will quote you price at the soonest.
For more information, please feel free to contact us anytime.
